In Stock Hot Product
CL12/0H-00A

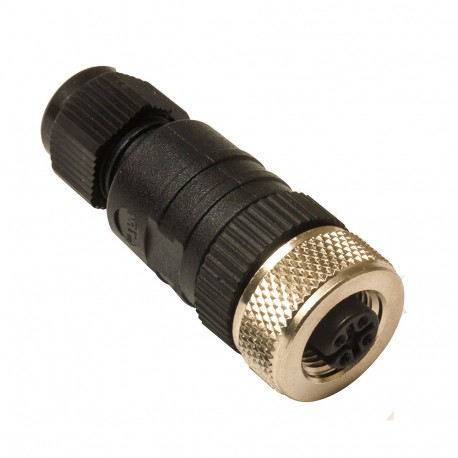

CL12/0H-00A MICRO DETECTORS Connector plug with terminals M12 5 poles female Axial
$0.00USD
3690 in stock
Key Specifications
Plug:M12
Model:Female
Wires:5
Fixing:screw terminals
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Plug | M12 |
| Model | Female |
| Wires | 5 |
| Fixing | screw terminals |
| Head type | Axial |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Outer diameter | 3 mm ... 6,5 mm |
| Conductors section | 5 |
| Contact resistance | ≤ 5 mΩ |
| Degree of protection | IP67 |
| Insulation resistance | ≥ 100 mΩ |
| Operating temperature | -25 °C ... 90 °C |
| Stripping lenght of the sheath | 20 mm |
Product Description
CL12/0H-00A Connector Conn. with terminals M12 5 poles female Axial
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
