In Stock Hot Product
CL10E300MWH

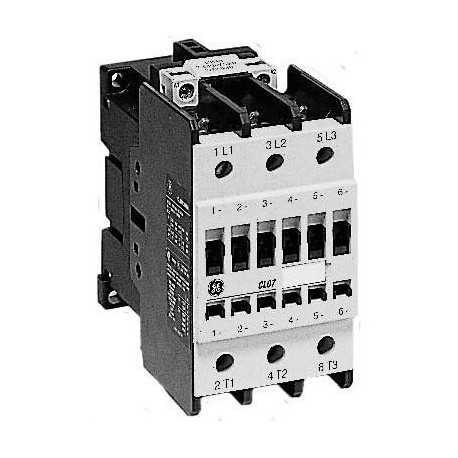

CL10E300MWH 113470 GENERAL ELECTRIC CL10E300MWH Contactor 3-pole 60-72V 50Hz / 60Hz AC
$0.00USD
4901 in stock
Key Specifications
Range:CL Contactors
Series:Three-pole contactors from 9 to 105 A (AC3)
Weight:1,46 kg
Category:Series CL - Contactor series for General Purpose application
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Range | CL Contactors |
| Series | Three-pole contactors from 9 to 105 A (AC3) |
| Weight | 1,46 kg |
| Category | Series CL - Contactor series for General Purpose application |
| ETIM 6.0 | EC000066 - Power contactor, AC switching |
| ETIM 7.0 | EC000066 - Power contactor, AC switching |
| Terminal type | Double clamp terminal |
| Power contacts | 3NO |
| Control circuit | AC/DC |
| Non-inductive loads AC1 | 140 A |
| Admissible power AC3 500V | 65 kW |
| Admissible power AC3 220V, 230V | 30 kW |
| Admissible power AC3 380V, 400V | 55 kW |
| Admissible power AC3 415V, 440V | 55 kW |
| Motors <= 440V, 3-phase 50/60Hz AC3 | 105 A |
| Electrical endurance: # operations AC3 | 1.5 x 106 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Category
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
