In Stock Hot Product
CL08EB00MF

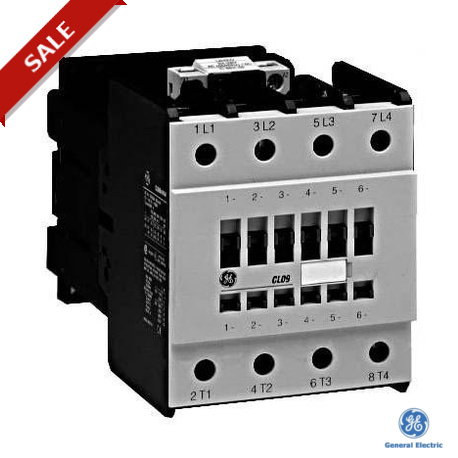

CL08EB00MF 112641 GENERAL ELECTRIC Double clamp terminal 4P, AC3 37kW 380-400V, 42-48V DC (GE)
$0.00USD
4995 in stock
Key Specifications
Series:Four-pole contactors from 12 to 80 A (AC3) [2NO+2NC]
Package (pcs):1
Terminal type:Double clamp terminal
Power contacts:2NO+2NC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Four-pole contactors from 12 to 80 A (AC3) [2NO+2NC] |
| Package (pcs) | 1 |
| Terminal type | Double clamp terminal |
| Power contacts | 2NO+2NC |
| Control circuit | AC/DC |
| Control Voltage: DC | 42-48 V |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive loads AC1 | 110 A |
| Weight (SPECIFICATIONS) | 1.32 kg |
| Admissible power AC3 500V | 45 kW |
| Admissible power AC3 220V, 230V | 22 kW |
| Admissible power AC3 380V, 400V | 37 kW |
| Admissible power AC3 415V, 440V | 45 kW |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
