CL08E300MWH

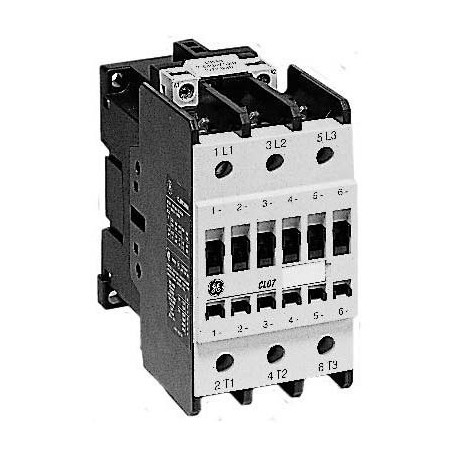

CL08E300MWH 113468 GENERAL ELECTRIC CL08E300MWH Contactor 3-pole 60-72V 50Hz / 60Hz AC
$0.00USD
4906 in stock
Key Specifications
Range:CL Contactors
Series:Three-pole contactors from 9 to 105 A (AC3)
Weight:1,12 kg
Category:Series CL - Contactor series for General Purpose application
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Range | CL Contactors |
| Series | Three-pole contactors from 9 to 105 A (AC3) |
| Weight | 1,12 kg |
| Category | Series CL - Contactor series for General Purpose application |
| ETIM 6.0 | EC000066 - Power contactor, AC switching |
| ETIM 7.0 | EC000066 - Power contactor, AC switching |
| Terminal type | Double clamp terminal |
| Power contacts | 3NO |
| Control circuit | AC/DC |
| Non-inductive loads AC1 | 110 A |
| Admissible power AC3 500V | 45 kW |
| Admissible power AC3 220V, 230V | 22 kW |
| Admissible power AC3 380V, 400V | 37 kW |
| Admissible power AC3 415V, 440V | 45 kW |
| Motors <= 440V, 3-phase 50/60Hz AC3 | 80 A |
| Electrical endurance: # operations AC3 | 1.5 x 106 |
