CL07AB00MN

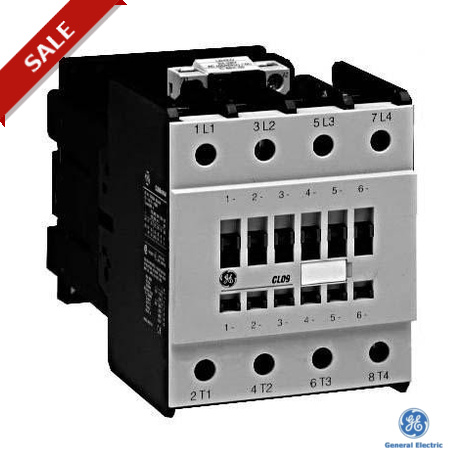

CL07AB00MN 104434 GENERAL ELECTRIC Double clamp terminal 4P, AC3 30kW 380-400V, 220-230V/50Hz-277V/60Hz AC (..
$0.00USD
3709 in stock
Key Specifications
Series:Four-pole contactors from 12 to 80 A (AC3) [2NO+2NC]
Package (pcs):1
Terminal type:Double clamp terminal
Power contacts:2NO+2NC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Four-pole contactors from 12 to 80 A (AC3) [2NO+2NC] |
| Package (pcs) | 1 |
| Terminal type | Double clamp terminal |
| Power contacts | 2NO+2NC |
| Control circuit | AC |
| Control Voltage: AC | 220-230 V (50 Hz) / 277 V (60 Hz) |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive loads AC1 | 110 A |
| Weight (SPECIFICATIONS) | 1.27 kg |
| Admissible power AC3 500V | 40 kW |
| Frequency Control Voltage: AC | 50 Hz / 60 Hz |
| Admissible power AC3 220V, 230V | 18.5 kW |
| Admissible power AC3 380V, 400V | 30 kW |
| Admissible power AC3 415V, 440V | 37 kW |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
