CL05EB00MN

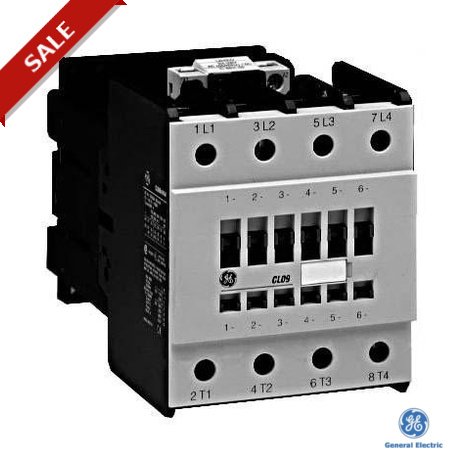

CL05EB00MN 112289 GENERAL ELECTRIC Double clamp terminal 4P, AC3 18.5kW 380-400V, 220V DC (GE)
$0.00USD
4678 in stock
Key Specifications
Series:Four-pole contactors from 12 to 80 A (AC3) [2NO+2NC]
Package (pcs):1
Terminal type:Double clamp terminal
Power contacts:2NO+2NC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Four-pole contactors from 12 to 80 A (AC3) [2NO+2NC] |
| Package (pcs) | 1 |
| Terminal type | Double clamp terminal |
| Power contacts | 2NO+2NC |
| Control circuit | AC/DC |
| Control Voltage: DC | 220 V |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive loads AC1 | 90 A |
| Weight (SPECIFICATIONS) | 1.29 kg |
| Admissible power AC3 500V | 25 kW |
| Admissible power AC3 220V, 230V | 11 kW |
| Admissible power AC3 380V, 400V | 18.5 kW |
| Admissible power AC3 415V, 440V | 22 kW |
