CL05E400MN

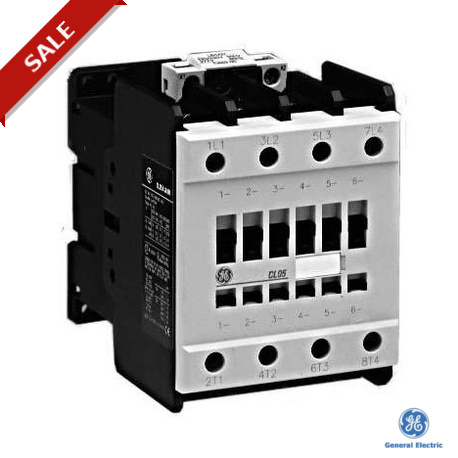

CL05E400MN 112219 GENERAL ELECTRIC Double clamp terminal 4P, AC1 59kW 380-400V, 220-250V DC (GE)
$0.00USD
4653 in stock
Key Specifications
Type:Coil with electronic module for contactors CL - E
Series:Four-pole contactors from 25 to 140 A (AC1)
Package (pcs):1
Terminal type:Double clamp terminal
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Coil with electronic module for contactors CL - E |
| Series | Four-pole contactors from 25 to 140 A (AC1) |
| Package (pcs) | 1 |
| Terminal type | Double clamp terminal |
| Power contacts | 4NO |
| Control circuit | DC |
| Control Voltage: DC | 220-250 V |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive loads AC1 | 90 A |
| Weight (SPECIFICATIONS) | 1.29 kg |
| Admissible power AC1 500V | 78 kW |
| Admissible power AC1 220V, 230V | 34 kW |
| Admissible power AC1 380V, 400V | 59 kW |
| Admissible power AC1 415V, 440V | 64 kW |
| Electrical endurance: # operations AC1 | 1.5 x 106 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
