CL05A400MJ

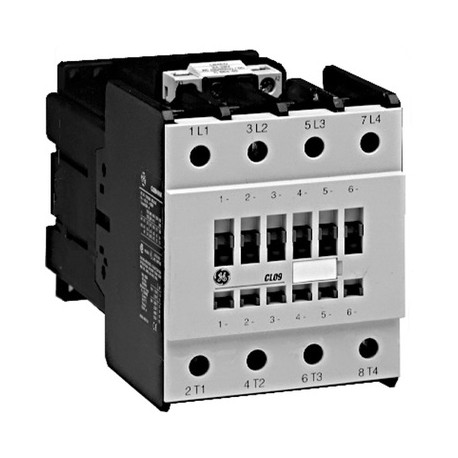

CL05A400MJ 104353 GENERAL ELECTRIC CL05A400MJ Contactor 4-pole 110V 50Hz AC
$0.00USD
4926 in stock
Key Specifications
Range:CL Contactors
Series:Four-pole contactors from 25 to 140 A (AC1)
Category:Series CL - Contactor series for General Purpose application
ETIM 6.0:EC000066 - Power contactor, AC switching
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Range | CL Contactors |
| Series | Four-pole contactors from 25 to 140 A (AC1) |
| Category | Series CL - Contactor series for General Purpose application |
| ETIM 6.0 | EC000066 - Power contactor, AC switching |
| ETIM 7.0 | EC000066 - Power contactor, AC switching |
| Terminal type | Double clamp terminal |
| Control circuit | AC |
| Control Voltage: AC | 110 V |
| Non-inductive loads AC1 | 90 A |
| Admissible power AC1 500V | 78 kW |
| Frequency Control Voltage: AC | 60 Hz50-60 Hz |
| Admissible power AC1 220V, 230V | 34 kW |
| Admissible power AC1 380V, 400V | 59 kW |
| Admissible power AC1 415V, 440V | 64 kW |
| Electrical endurance: # operations AC1 | 1.5 x 106 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Category
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
