In Stock Hot Product

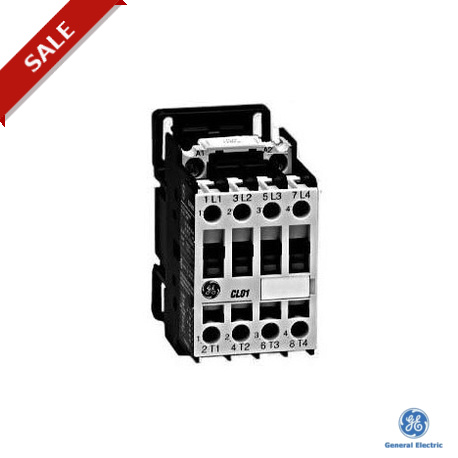

CL02A400T3
CL02A400T3 110610 GENERAL ELECTRIC Screw terminal 4P, AC1 22kW 380-400V, 110-115V/50-60Hz AC Bifreq. coil (G..
$0.00USD
4107 in stock
Key Specifications
Series:Four-pole contactors from 25 to 140 A (AC1)
Package (pcs):5
Terminal type:Screw terminal
Power contacts:4NO
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Four-pole contactors from 25 to 140 A (AC1) |
| Package (pcs) | 5 |
| Terminal type | Screw terminal |
| Power contacts | 4NO |
| Control circuit | AC |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive loads AC1 | 32 A |
| Weight (SPECIFICATIONS) | 0.28 kg |
| Admissible power AC1 500V | 27.5 kW |
| Admissible power AC1 220V, 230V | 12 kW |
| Admissible power AC1 380V, 400V | 22 kW |
| Admissible power AC1 415V, 440V | 23 kW |
| Electrical endurance: # operations AC1 | 1.5 x 106 |
| Control Voltage: AC Bifreq. Coil (at 50-60 Hz) | 110-115 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
