In Stock Hot Product
CL01D310TD

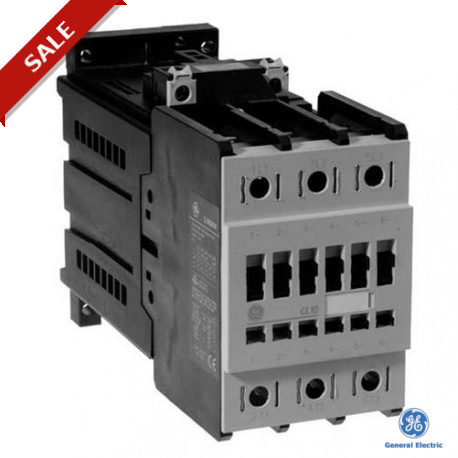

CL01D310TD 112026 GENERAL ELECTRIC Screw terminal 3P, AC3 5.5kW 380-400V, 24V DC (GE)
$0.00USD
4252 in stock
Key Specifications
Type:For contactors type CL - D
Series:Three-pole contactors from 9 to 105 A (AC3)
Aux Contacts:1NO
Package (pcs):5
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | For contactors type CL - D |
| Series | Three-pole contactors from 9 to 105 A (AC3) |
| Aux Contacts | 1NO |
| Package (pcs) | 5 |
| Terminal type | Screw terminal |
| Control circuit | DC |
| Control Voltage: DC | 24 V |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive loads AC1 | 25 A |
| Weight (SPECIFICATIONS) | 0.49 kg |
| Admissible power AC3 500V | 7.5 kW |
| Admissible power AC3 220V, 230V | 3 kW |
| Admissible power AC3 380V, 400V | 5.5 kW |
| Admissible power AC3 415V, 440V | 5.5 kW |
| Electrical endurance: # operations AC3 | 2 x 106 |
Product Description
CL01D310TD
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
