CL01A301TN

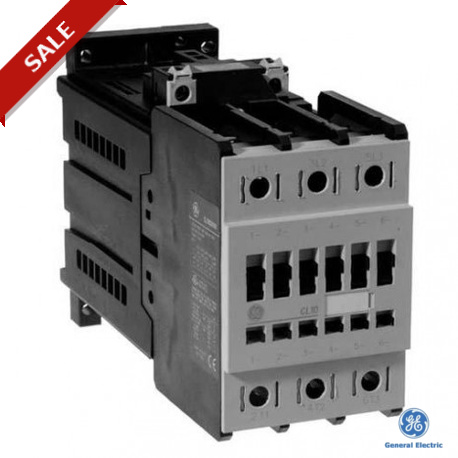

CL01A301TN 104094 GENERAL ELECTRIC Screw terminal 3P, AC3 5.5kW 380-400V, 220-230V/50Hz-277V/60Hz AC (GE)
$0.00USD
3235 in stock
Key Specifications
Type:For contactors type CL - D
Series:Three-pole contactors from 9 to 105 A (AC3)
Aux Contacts:1NC
Package (pcs):5
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | For contactors type CL - D |
| Series | Three-pole contactors from 9 to 105 A (AC3) |
| Aux Contacts | 1NC |
| Package (pcs) | 5 |
| Terminal type | Screw terminal |
| Control circuit | AC |
| Control Voltage: AC | 220-230 V (50 Hz) / 277 V (60 Hz) |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive loads AC1 | 25 A |
| Weight (SPECIFICATIONS) | 0.295 kg |
| Admissible power AC3 500V | 7.5 kW |
| Frequency Control Voltage: AC | 50 Hz / 60 Hz |
| Admissible power AC3 220V, 230V | 3 kW |
| Admissible power AC3 380V, 400V | 5.5 kW |
| Admissible power AC3 415V, 440V | 5.5 kW |
| Electrical endurance: # operations AC3 | 2 x 106 |
Product Description
CL01A301TN
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
