CK85BA311N

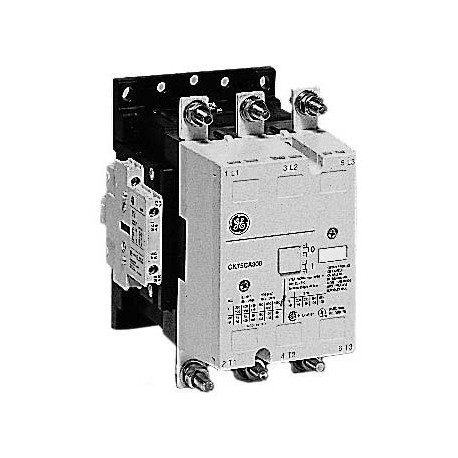

CK85BA311N 104474 GENERAL ELECTRIC Contactor 3 pole 110V 60Hz/220-230V 50Hz
$0.00USD
3002 in stock
Key Specifications
Range:Three-pole contactors from 150 to 825A (AC3)
Series:Three- and four-pole contactors
Weight:5.900 kg
Category:Series CK - High efficiency contactors - 825A and 1250A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Range | Three-pole contactors from 150 to 825A (AC3) |
| Series | Three- and four-pole contactors |
| Weight | 5.900 kg |
| Category | Series CK - High efficiency contactors - 825A and 1250A |
| ETIM 5.0 | EC000066 |
| ETIM 6.0 | EC000066 |
| Aux Contacts | 1NO+1NC |
| Package (pcs) | 1 |
| Control circuit | AC |
| Admissible power AC3 415V | 125 kW |
| Admissible power AC3 440V | 125 kW |
| Admissible power AC3 500V | 132 kW |
| Frequency Control Voltage: AC | 50 Hz, 60 Hz |
| Admissible power AC3 220V, 230V | 65 kW |
| Admissible power AC3 380V, 400V | 110 kW |
| Motors <= 440V, 3-phase 50/60Hz AC3 | 205 A |
| Electrical endurance: # operations AC3 | 1.7 x 106 |
Product Description
CK85BA311N
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Category
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
