CK3M-CPU121

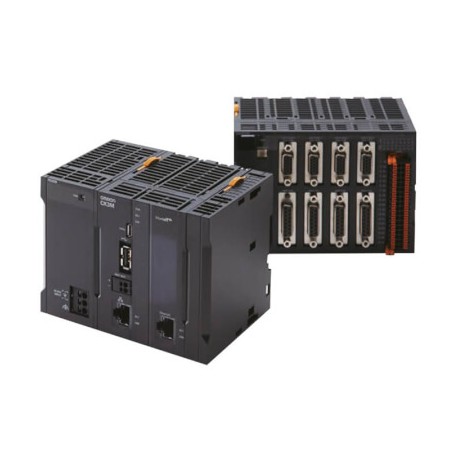

CK3M-CPU121 CK3M0006G 684963 OMRON CK3M CPU, 1 GB RAM, 1 GB removable memory, 8 EtherCAT axes, up to 2 axis ..
$6,810.90USD
48 in stock
Key Specifications
8 (Tangent tool management):CK3M-CPU121
8 GB (Tangent tool management):FZ-MEM8G
Item (Tangent tool management):Description
DIN track (Tangent tool management):Length: 0.5 m; height: 7.3 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 8 (Tangent tool management) | CK3M-CPU121 |
| 8 GB (Tangent tool management) | FZ-MEM8G |
| Item (Tangent tool management) | Description |
| DIN track (Tangent tool management) | Length: 0.5 m; height: 7.3 mm |
| End cover (Tangent tool management) | End cover for CK3M CPU unit (Provided withthe CPU unit) |
| USB memory (Tangent tool management) | 2 GB |
| EC Engineer (Tangent tool management) | This computer software is used to configureand monitor the EtherCAT network by using the controller as theEtherCAT master.This is a free software, contact your OMRONrepresentative for information on how to procure. |
| Product name (Tangent tool management) | Specifications |
| Power PMAC-NC16 SDK (Tangent tool management) | This computer software is used to controlworking machines and other CNC machines with the controller. Usethis software when you want to customize the HMI screen. The productcontains extension source codes used for customization.Thisis a non-free software, contact your OMRON representative for informationon how to procure. |
| DA output (True DAC) (Tangent tool management) | CK3W-AX1515P |
| Power PMAC-NC16 Runtime (Tangent tool management) | This computer software is used to controlworking machines and other CNC machines with the controller. Usethis software when you do not customize the HMI screen.Thisis a non-free software, contact your OMRON representative for informationon how to procure. |
| DA output (Filtered PWM) (Tangent tool management) | PNP type |
| EtherCAT junction slaves (Tangent tool management) | 3 portsPower supply voltage: 20.4 to 28.8 VDC (24 VDC –15% to 20%)Current consumption: 0.08 A |
| Length: 1 m; height: 16 mm (Tangent tool management) | PFP-100N2 |
| Length: 1 m; height: 7.3 mm (Tangent tool management) | PFP-100N |
| EtherCAT®: 1 port (DC sync) (Tangent tool management) | 4 |
| Power Supply Unit for CK3M-CPU1⬜1 (Tangent tool management) | Rated output voltage: 5 VDC, maximum outputcurrent: 8 A |
| Axial Interface Unit forCK3M-CPU1⬜1 (Tangent tool management) | DA output (Filtered PWM) |
| End plate to secure the unitson the DIN rail (Tangent tool management) | PFP-M (2 pcs) |
| Power PMAC IDE2Power PMAC IDE version 4.0or higher is needed. (Tangent tool management) | This computer software is used to configurethe controller, create user programs and debug programs.Thisis a free software, contact your OMRON representative for informationon how to procure. |
| CK3M-CPU1⬜1CPU Unit2The end cover unit CK3W-TER11 is included with the CPU unit. (Tangent tool management) | RAM: 1 GBBuilt-In flash memory: 1 GB |
| 6 portsPower supply voltage: 20.4 to 28.8 VDC (24 VDC –15% to 20%)Current consumption: 0.17 A (Tangent tool management) | GX-JC06 |
Product Description
CK3M CPU, 1 GB RAM, 1 GB removable memory, 8 EtherCAT axes, up to 2 axis interface units can be connected, expansion units can also be connected.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
