CK2,5-ED-1,50ST-S AG

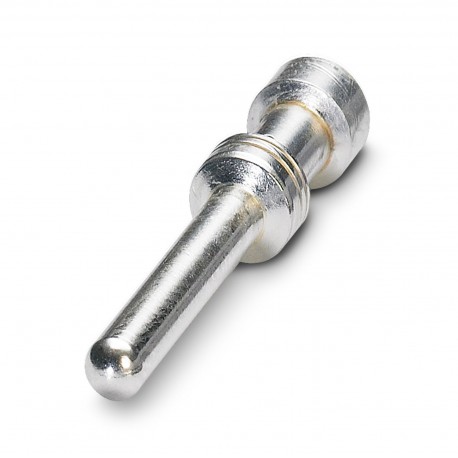

CK2,5-ED-1,50ST-S AG 1663860 PHOENIX CONTACT Crimp contact
$0.37USD
27063 in stock
Key Specifications
GTIN:4017918123536
Note:Made to Order (non-returnable)
Orderkey:1663860
Catalog page:Page 553 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918123536 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1663860 |
| Catalog page | Page 553 (C-2-2017) |
| Packing unit | 100 pc |
| (Material data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389099 |
| Minimum order quantity | 100 pc |
| China RoHS (Material data) | Environmentally Friendly Use Period = 50 |
| Contact material (General) | Copper alloy |
| REACh SVHC (Material data) | Lead 7439-92-1 |
| Type (Mechanical characteristics) | Individual male contact |
| Contact surface material (General) | silver-plated |
| Series (Mechanical characteristics) | HC-HV |
| Weight per Piece (excluding packing) | 1.220 g |
| Contact diameter (Ambient conditions) | 2.5 mm |
| Connection (Mechanical characteristics) | for HC-M-06-, HC-M-06P-, HC-M-02-CT-...-HV-16, HC-M-HV-, HC-M-08-, HC-M-20-, HC-A-, HC-BB-, HC-B- and HC-HV contact carriers. The quality of a crimp connection is determined by the DIN EN 60352-2. |
| Contact type (Mechanical characteristics) | turned |
| Conductor cross section (Ambient conditions) | 1.5 mm² ... 1.5 mm² |
| Connection method (Mechanical characteristics) | Crimp connection |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 500 |
| Connection cross section AWG (Ambient conditions) | 16 |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 125 °C |
| Stripping length of the individual wire (Ambient conditions) | 7.5 mm |
Product Description
Crimped contact, contact diameter: 2.5 mm, machined, Male, contact material: Copper alloy, contact surface: silver, connection cross-section: 1.5 mm² ... 1.5 mm², AWG 16, Delayed Contact
