CK10CE311W48-130

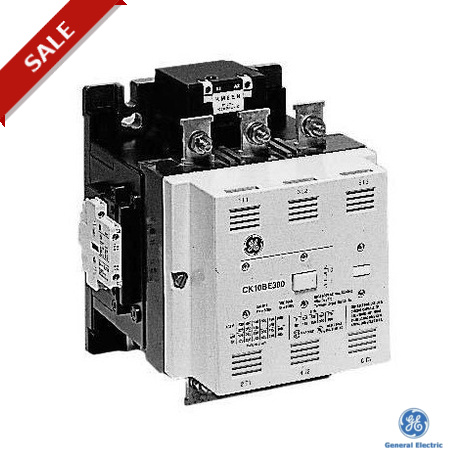

CK10CE311W48-130 246171 GENERAL ELECTRIC CK10CE311W48-130 Contactor 3P 420A AC3 e-Coil 48-130V
$0.00USD
4546 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000066
ETIM 6.0 (DIMENSIONS):EC000066
Weight (SPECIFICATIONS):11 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Weight (SPECIFICATIONS) | 11 kg |
| Group (ORDER/DELIVERY STATUS) | AC/DC with electronic module |
| Range (ORDER/DELIVERY STATUS) | Three-pole contactors from 150 to 825A (AC3) |
| Series (ORDER/DELIVERY STATUS) | Three- and four-pole contactors |
| Aux Contacts (ORDER/DELIVERY STATUS) | 1NO+1NC |
| Package (pcs) (ORDER/DELIVERY STATUS) | 1 |
| Control circuit (ORDER/DELIVERY STATUS) | AC/DC |
| Non-inductive load AC1 (ORDER/DELIVERY STATUS) | 600 A |
| Admissible power AC3 415V (ORDER/DELIVERY STATUS) | 230 kW |
| Admissible power AC3 440V (ORDER/DELIVERY STATUS) | 230 kW |
| Admissible power AC3 500V (ORDER/DELIVERY STATUS) | 300 kW |
| Frequency Control Voltage: AC (ORDER/DELIVERY STATUS) | 50 Hz / 60 Hz |
| Admissible power AC3 220V, 230V (ORDER/DELIVERY STATUS) | 125 kW |
| Admissible power AC3 380V, 400V (ORDER/DELIVERY STATUS) | 220 kW |
| Motors <= 440V 3-phase 50/60Hz AC3 (ORDER/DELIVERY STATUS) | 420 A |
| Electrical endurance: # operations AC3 (ORDER/DELIVERY STATUS) | 1.1 x 106 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Serie CK 3 pole contactors , Contol Voltage (V AC/DC): 48-130,Max.oper.current AC1(A): 600,Max.oper.current AC3 (A): 420,Admissible power 220/230V (kW): 125,Admissible power 380/400V (kW): 220.
