CK07BA411U

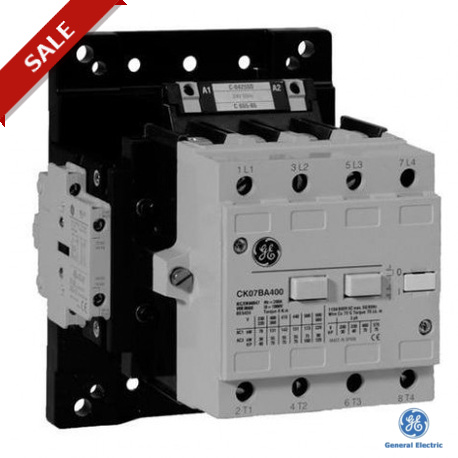

CK07BA411U 104535 GENERAL ELECTRIC CK07BA411U CONTACTOR 4P 55KW-105A 380-400V/50HZ 480V/60HZ
$0.00USD
4715 in stock
Key Specifications
Range:Four-pole contactors from 200 to 1250A (AC1)
Series:Three- and four-pole contactors
Aux Contacts:1NO+1NC
Package (pcs):1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Range | Four-pole contactors from 200 to 1250A (AC1) |
| Series | Three- and four-pole contactors |
| Aux Contacts | 1NO+1NC |
| Package (pcs) | 1 |
| Control circuit | AC |
| Control Voltage: AC | 380-400 V (50 Hz) / 480 V (60 Hz) |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive load AC1 | 200 A |
| Weight (SPECIFICATIONS) | 4.7 kg |
| Admissible power AC1 415V | 143 kW |
| Admissible power AC1 440V | 151 kW |
| Admissible power AC1 500V | 173 kW |
| Frequency Control Voltage: AC | 50 Hz / 60 Hz |
| Admissible power AC1 220V, 230V | 76 kW |
| Admissible power AC1 380V, 400V | 131 kW |
| Admissible power AC3 380V, 400V | 55 kW - 105 A |
| Electrical endurance: # operations AC1 | 1 x 106 |
