In Stock Hot Product
CJ1W-OC211

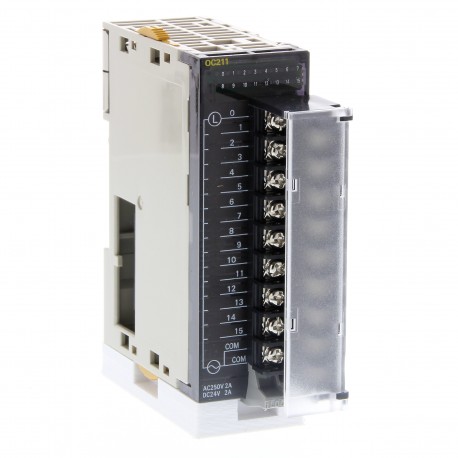

CJ1W-OC211 CJ1W9127R 382932 OMRON Module 16 Relay Outputs M3 Connector
$0.00USD
3194 in stock
Key Specifications
Depth:89 mm
Width:31 mm
Height:90 mm
Weight:118 g
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 89 mm |
| Width | 31 mm |
| Height | 90 mm |
| Weight | 118 g |
| I/O system | CJ I/O Bus |
| Output current | 2 A |
| Type of module | Digital I/O |
| Digital input type | None |
| Digital output type | Relay NO |
| Expansion unit type | Basic I/O Unit |
| I/O connection type | Screw |
| Number of COM terminals | 2 |
| Detachable I/O connector | |
| Number of I/O connectors | 1 |
| Number of digital inputs | 0 |
| Number of digital outputs | 16 |
| Permitted voltage at output | 5-250 V |
| Number of IOG (V-) terminals | 0 |
| Number of IOV (V+) terminals | 0 |
| Suitable for safety functions | |
| Short-circuit protected outputs |
Product Description
Digital output unit, 16 x relay outputs, 250 VAC/24 VDC, 2 A max, screw terminal
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
