In Stock Hot Product
CIMR-AC4A0930AAA

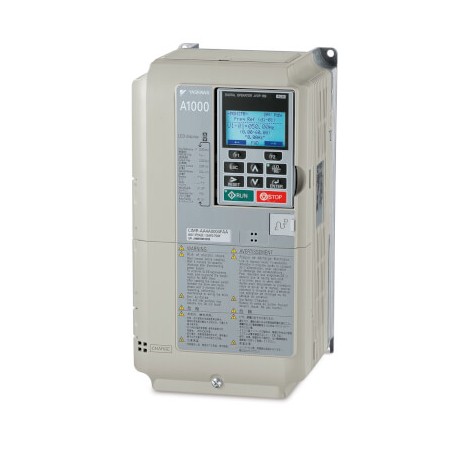

CIMR-AC4A0930AAA AA033018R 351794 OMRON A1000 drive: 3~ 400 V, HD: 810 A/450 kW, ND: 930 A/500 kW, max. outp..
$0.00USD
4303 in stock
Key Specifications
():SI-S3
Depth:370 mm
Width:1250 mm
Height:1380 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | SI-S3 |
| Depth | 370 mm |
| Width | 1250 mm |
| Height | 1380 mm |
| Weight | 545000 g |
| Finless type | |
| Built in EMC filter | |
| Drive supply voltage | 400 V three phase |
| Communication port(s) | MODBUS Slave, Serial RS-422, Serial RS-485 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Inverter control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Degree of protection (IP) | IP00 |
| Max. motor output at constant torque (HD) | 450 kW |
| Max. motor output at variable torque (ND) | 500 kW |
Product Description
Inverter A1000: 3~ 400 V, HD: 810 A/450 kW, ND: 930 A/500 kW, output frequency max. 400 Hz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
