CH223DIU

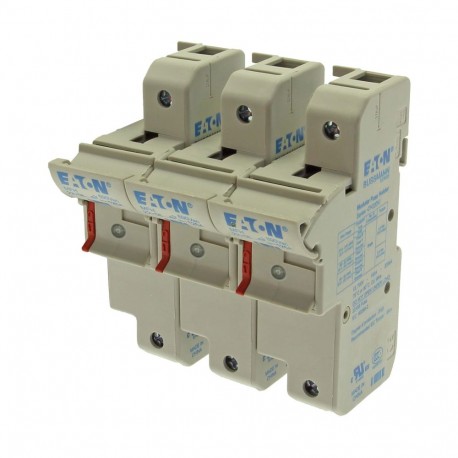

CH223DIU EATON ELECTRIC Fuse-holder, low voltage, 125 A, AC 690 V, 22 x 58 mm, 3P, IEC, With indicator
$0.00USD
3211 in stock
Key Specifications
Feature Name:Feature Value
Lockable (EF000113):Yes
For fuse size (EF008316):22x58 mm
Built-in depth (EF000218):51.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Lockable (EF000113) | Yes |
| For fuse size (EF008316) | 22x58 mm |
| Built-in depth (EF000218) | 51.5 mm |
| Mounting method (EF000003) | DIN rail |
| Nominal voltage (EF000002) | 690 V |
| Number of poles (EF001391) | 3 |
| Degree of protection (IP) (EF005474) | IP20 |
| With optical defect indication (EF008181) | Yes |
| Width in number of modular spacings (EF002950) | 6 |
| Concurrently switching neutral conductor (EF005997) | No |
Product Description
Eaton's Bussmann series 3-Pole modular fuse holder, rated at 690 V a.c./1000 V d.c. (IEC), 700 V a.c. (UL) , 125 Amps (IEC), 100 A (UL), fitted with a neon indicator, suitable for 22 x 58 mm Cylindric
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
