CGS 50

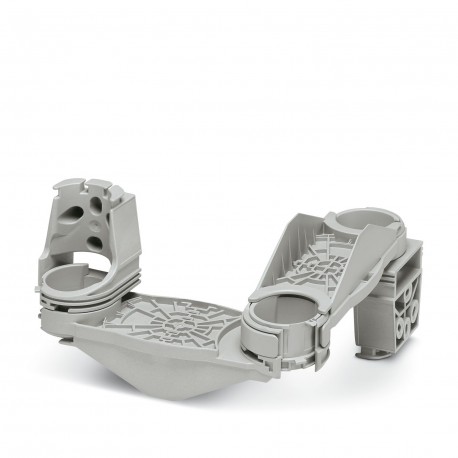

CGS 50 3071400 PHOENIX CONTACT Cable routing system
$0.00USD
4010 in stock
Key Specifications
Color:gray (RAL 7042)
Depth:140.5 mm
Width:68 mm
Height:218 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | gray (RAL 7042) |
| Depth | 140.5 mm |
| Width | 68 mm |
| Height | 218 mm |
| General | Cable binders can be used up to a width of 4 mm and from a length of 40 mm |
| Diameter | 42 mm |
| Material | PC |
| Components | halogen-free |
| Cable length | 700 mm ... 460 mm |
| Product type | Cable feed-through |
| Hole diameter | 5.5 mm |
| Number of cables | 100 for 1.5 mm² |
| Dimensional drawing | |
| Drill hole distance, vertical | 25 mm |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 85 °C |
| Drill hole distance, horizontal | 25 mm |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Product Description
Cable guide system, with closed swivel joint, length: 218 mm, width: 68 mm, height: 140.5 mm, diameter: 42 mm, colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
