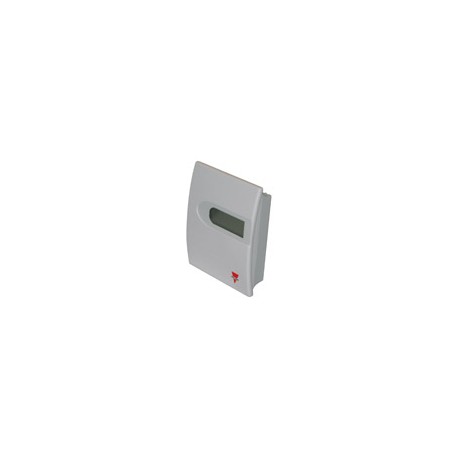

CGESHTPWV2D

Environmental SensorsHumidity / Temperature Transmitters• Easiest installation• Modern design• Long term stable• Optional display• Traceable calibration• Indoor applications• Wall mounting• CE, RoHSProduct DescriptionThese room transmitters are the ideal solution for indoor applicationssuch as HVAC in residential and official buildings.The verystylish,functional housing makes easyinstallation and fast exchange of the sensing unit for service purposes possible. The high quality of the used capacitive humidity sensor and state-of-the-art microprocessor controlledelectronics are the guarantee for best accuracy and a wide range of options. The standard humidity outputof the transmitteris4-20mA or 0-10V. The temperatureoutput signalcan be active or passive.It can be equipped with a good legible LC display. The displayed values for humidity and temperature are alternating.ApprovalsOrdering KeyCGESHTW V 2T04Type SelectionModel Output Sensor DisplayTemperature UnitTemperature ScaleModelCGESHTW humidity +temperatureCGESHTPW humidity +temperature passiveOutputV 0-10VA 4-20mATemperature Sensor (only passive)1 Pt 100 DIN A2 Pt 1000 DIN ADisplayNil Without DisplayD With DisplayTemperature Unit (only for Display)Nil °CF °FTemperature Scale (only for CGESHTW)T04 0...50General DataVoltage supply (UV)0-10V 15-40VDC or 24VAC ±20%4-20mA28VDC > UV > 10+0.02xRL (RL< 500Ω)CE compatibility according EN 50081-1 FCC Part15 ClassB EN 50082-1 ICES-003 ClassBTemperature rangesworking temperature range -5...55°C/23...131°FCurrent consumptionDC supply typical 4mAAC supply typical 15mAeffDisplay for CGESHTWx version Humidity /Temperature alternatingfor CGESHTPWx version Humidityworking temperature with display -5...55°C/23...131°Fstorage temperature range -25...60°C/-13...140°F1Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 250808
