In Stock Hot Product
CES-STPG-GY-2ASI-LL
CES-STPG-GY-2ASI-LL 1410071 PHOENIX CONTACT Cable sleeve
$0.00USD
3888 in stock
Key Specifications
GTIN:4046356776226
Orderkey:1410071
Catalog page:Page 689 (C-2-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356776226 |
| Orderkey | 1410071 |
| Catalog page | Page 689 (C-2-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85472000 |
| (Ambient conditions) | SEBS (halogen-free) |
| Minimum order quantity | 10 pc |
| Color (Ambient conditions) | gray |
| Width (Key Commercial Data) | 19.5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 17 mm |
| Length (Key Commercial Data) | 29.5 mm |
| Material (Ambient conditions) | SEBS |
| Degree of protection (Dimensions) | IP54 |
| Weight per Piece (excluding packing) | 7.120 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| No. of conductors (Ambient conditions) | 2 |
| Connection in acc. with standard (General) | CUL |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C (static) |
| Conductor sealing range (Key Commercial Data) | AS-i cable |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description

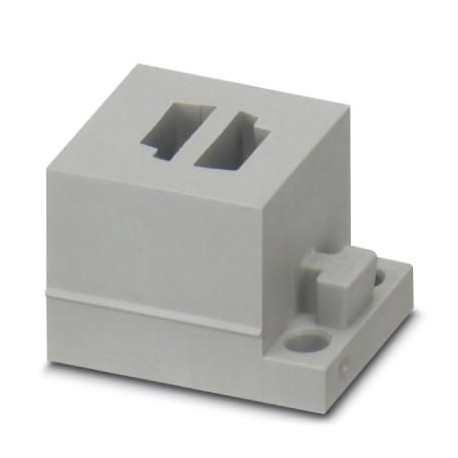

Cable grommet, small, number of conductors: 2, type: AS-i Cable (Left Left), split, material: SEBS (halogen-free), color: gray, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
