CES-SRG-BK-4X6
CES-SRG-BK-4X6 1410152 PHOENIX CONTACT Cable sleeve
$0.00USD
4110 in stock
Key Specifications
Width:19.5 mm
Height:17 mm
Length:29.5 mm
Material:NBR
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Width | 19.5 mm |
| Height | 17 mm |
| Length | 29.5 mm |
| Material | NBR |
| Seal size | small |
| Product type | Cable sleeve |
| Design, Format | Round cable |
| Article revision | 03 |
| No. of conductors | 4 |
| Design, Cable seal | slotted |
| Dimensional drawing | |
| Degree of protection | IP54 |
| External cable diameter | 4x 5 mm ... 6 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
Product Description

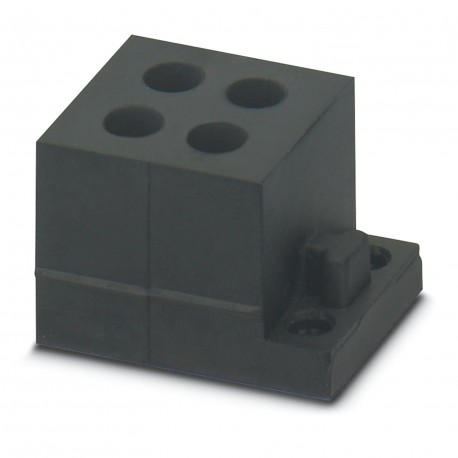

Cable grommet, small, number of conductors: 4, type: Round cable, split, outer diameter of cable: 4x 5 mm ... 6 mm, material: NBR, color: black, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
