CES-LRC-BK

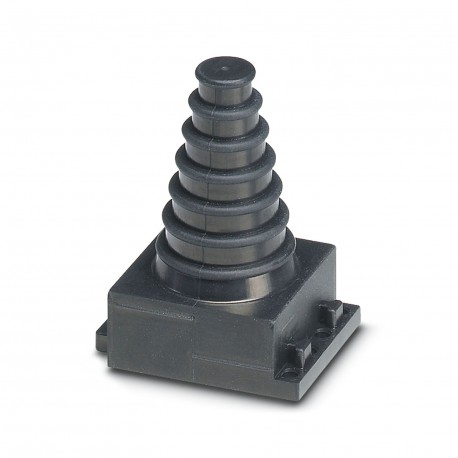

CES-LRC-BK 0801719 PHOENIX CONTACT Cable sleeve
$0.00USD
3268 in stock
Key Specifications
:IP65 (When using cable ties in combination with the installation direction to the side or downwards)
Width:19.5 mm
Height:17 mm
Length:29.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IP65 (When using cable ties in combination with the installation direction to the side or downwards) | |
| Width | 19.5 mm |
| Height | 17 mm |
| Length | 29.5 mm |
| Material | NBR |
| Seal size | large |
| Product type | Cable sleeve |
| Assembly note | IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
| Design, Format | Round cable |
| Article revision | 00 |
| No. of conductors | 1 |
| Design, Cable seal | closed |
| Dimensional drawing | |
| Degree of protection | IP54 |
| External cable diameter | 1x 7 mm ... 24 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
Product Description
Cable grommet, large, number of conductors: 1, type: Round cable, closed, outer diameter of cable: 1x 7 mm ... 24 mm, material: NBR, color: black, length: 29.5 mm, width: 19.5 mm, height: 17 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
