CES-B10-HFFS-PLBK

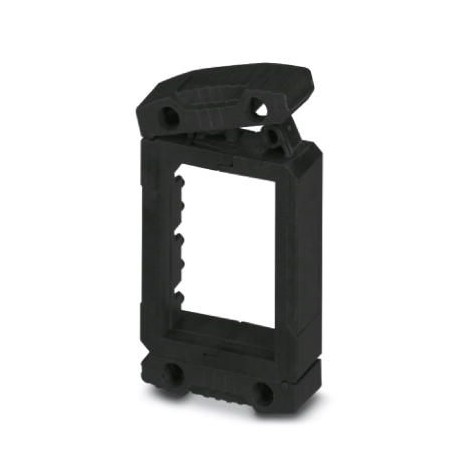

CES-B10-HFFS-PLBK 0801663 PHOENIX CONTACT Sealing frame
$0.00USD
3343 in stock
Key Specifications
GTIN:4046356674096
Orderkey:0801663
Catalog page:Page 684 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356674096 |
| Orderkey | 0801663 |
| Catalog page | Page 684 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85472000 |
| (Ambient conditions) | A video tutorial on how to assemble the product can be found in the Downloads area, in the Video category. |
| Note (Ambient conditions) | Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors). |
| Color (Ambient conditions) | black |
| Torque (Ambient conditions) | 1.8 Nm (Mounting screw, M4 (ISO 4762/DIN 912)) |
| Width (Key Commercial Data) | 58 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 20 mm |
| Length (Key Commercial Data) | 99.2 mm |
| Material (Ambient conditions) | PA (halogen-free) |
| Frame type (Ambient conditions) | Sealing frame |
| Degree of protection (Dimensions) | IP54 |
| Weight per Piece (excluding packing) | 121.800 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection in acc. with standard (General) | CUL |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C (static) |
| Installation instructions (Ambient conditions) | One large sleeve requires the space of 4 small sleeves, M4 mounting screws (ISO 4762/DIN 912), torque for mounting screw: 1.8 Nm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Sealing frames, with locking flange, construction: B10, Number of cable seals (small): 6, material: PA (halogen-free), color: black, length: 99.2 mm, width: 58 mm, height: 20 mm
