In Stock Hot Product
CEPR5008

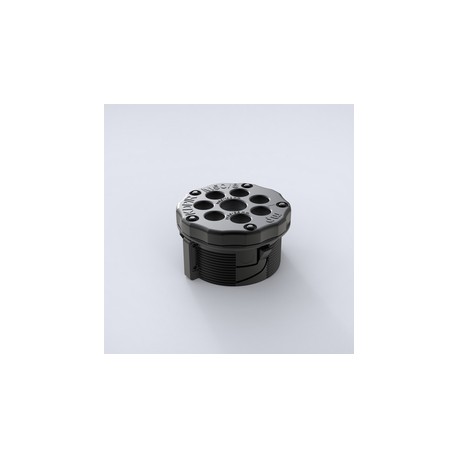

CEPR5008 ELDON Round cable entry 50, 8 open CEPR5008
$0.00USD
4164 in stock
Key Specifications
Benefit: (Features):The gland plate provides a good solution when an enclosure requires many incoming/outgoing cables but there is limited cable installation space.
Feature: (Features):Round plastic click-in gland plates offer different predefined cable configurations.
Advantage: (Features):The gland plate can be installed quickly and increases the number of cables that can be installed.
Finish: (Technical data):Black.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Benefit: (Features) | The gland plate provides a good solution when an enclosure requires many incoming/outgoing cables but there is limited cable installation space. |
| Feature: (Features) | Round plastic click-in gland plates offer different predefined cable configurations. |
| Advantage: (Features) | The gland plate can be installed quickly and increases the number of cables that can be installed. |
| Finish: (Technical data) | Black. |
| Material: (Technical data) | Polyamide, and the seal is made of NBR/EPDM, halogen free. |
| Protection: (Technical data) | IP 65. |
| Description: (Technical data) | Round plastic cable entry for a fast, economical and tool-free incoming of cables and/or pneumatic conduits inside the enclosure. Integrated seal. For snap-in mounting. Snap-in system works at wall thicknesses of 1.4 to 2 mm. Installation height: 9 mm outside, and 24-25 inside. |
| Flammability: (Technical data) | V-0 according to UL94. |
| Pack quantity: (Technical data) | 1 piece. |
| Temperature resistance: (Technical data) | -30ºC to +90ºC. |
Product Description
Entry round 50, 8 abert.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
