CE2/0P-1E

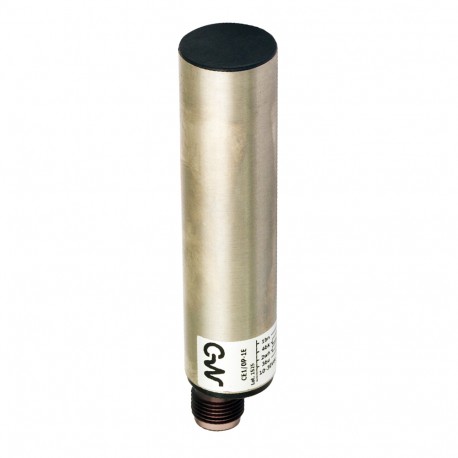

CE2/0P-1E MICRO DETECTORS Capacitive sensor D20 shielded PNP plug M12 C/Autotest
$0.00USD
4887 in stock
Key Specifications
Weight:80g
Mounting:Shielded
Approvals:CEcULus
Dimensions:ø20 / L = 92mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 80g |
| Mounting | Shielded |
| Approvals | CEcULus |
| Dimensions | ø20 / L = 92mm |
| Hysteresis | ≤ 20% |
| Connections | M12 plug |
| Output type | PNP with self monitoring |
| Load current | ≤ 100mA |
| LED indicators | Yellow LED (object detected) |
| Leakage current | ≤ 1μA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% |
| Housing Material | stainless steel |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Max ripple content | ≤15% |
| Output voltage drop | 1,5V - max. IL=100mA |
| Switching frequency | 300Hz |
| Thermal drift of Sr | < 20% |
| Active Head Material | LCP |
| Degree of protection | IP 65 |
| Supplied Accessories | screw driver |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | 17mA |
| Sensitivity adjustment | Yes |
| Nominal sensing distance | 1,5…10mm |
| Short-circuit protection | Yes, autoreset |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
Product Description
CE2/0P-1E Capacitive sensor D20 shielded PNP conn. M12 C/Autotest
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
