In Stock Hot Product
CD12M/VB-100C1

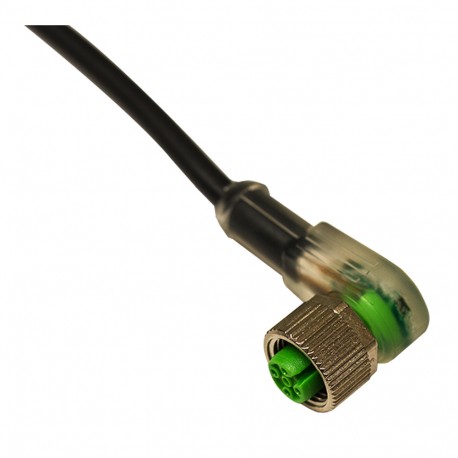

CD12M/VB-100C1 MICRO DETECTORS Connector Female M12 90° c/led PNP NO-NC 4 poles cable PVC 10m
$0.00USD
4861 in stock
Key Specifications
1:10
Led:2 led
Plug:M12
Wires:4 NO/NC-PNP
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1 | 10 |
| Led | 2 led |
| Plug | M12 |
| Wires | 4 NO/NC-PNP |
| Head type | 90° |
| Outer diameter | Ø 4,5 mm ± 5% |
| Wire isolation | PVC |
| Gasket material | PVC CEI 2022 II OR |
| Nominal current | 4 A |
| Nominal voltage | Max. 250 V ac/dc |
| Tightening torque | 0,6 Nm |
| Conductors section | 0,25 mm2 (32 x 0,10 mm2) |
| Degree of protection | IEC IP67 |
| Operating temperature | =10°C...+80°C (flexible installation)-25°C...+80°C (fixed installation) |
| Rated impulse voltage | 2,5 kV |
Product Description
CD12M/VB-100C1 Connector Female M12 90° led PNP NO-NC 4 poles cable PVC 10m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
