In Stock Hot Product
CD12M/0H-020A5

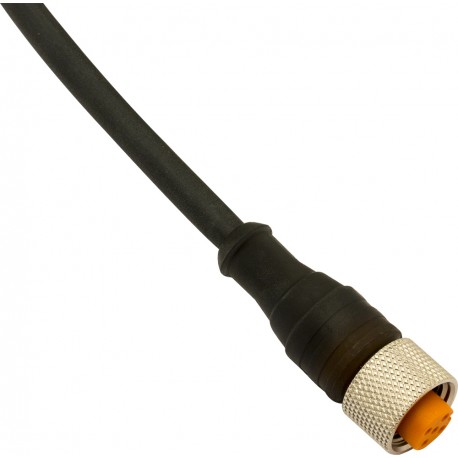

CD12M/0H-020A5 MICRO DETECTORS Connector Female M12 Axial 5 poles, cable PUR 2m
$0.00USD
4769 in stock
Key Specifications
1:2
Led:No
Plug:M12
Wires:5
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1 | 2 |
| Led | No |
| Plug | M12 |
| Wires | 5 |
| Head type | Axial |
| Outer diameter | Ø 4,5 mm ± 5% |
| Wire isolation | TPU |
| Gasket material | TPU |
| Nominal current | 4 A |
| Nominal voltage | 60 V |
| Tightening torque | 0,6 Nm |
| Conductors section | 0,25 mm2 (32 x 0,10 mm2) |
| Degree of protection | IEC IP67 |
| Operating temperature | -5°C ÷ +70°C (flexible installation)-30°C ÷ +80°C (fixed installation) |
Product Description
CD12M/0H-020A5 Connector Female M12 Axial 5 poles, cable PUR 2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
