CD08F/0B-100A4

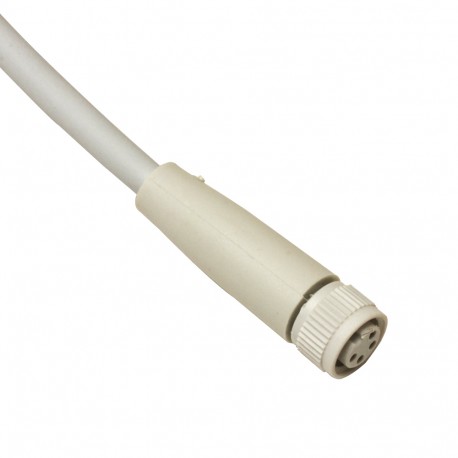

CD08F/0B-100A4 MICRO DETECTORS M8 female Connector Axial 4 poles Cable PP-EPDM 10m IP69K
$0.00USD
3143 in stock
Key Specifications
1:10
Led:No
Wires:4
Head type:Assiale
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1 | 10 |
| Led | No |
| Wires | 4 |
| Head type | Assiale |
| Acceleration | ≤ 10 m/s3 |
| Jacket color | RAL 7035 - Grigio |
| Nut material | PP |
| Torsion force | ± 270°/m (4000000 cicli di torsione, max. 25 cicli di torsione/min) |
| Bending radius | > 10 x D (movimentazione) > 5 x D (posa fissa) |
| Outer diameter | Ø 4,5mm ± 0,15mm |
| Wire isolation | PP |
| Gasket material | FKM |
| Nominal current | 4 A |
| Nominal voltage | Max . 48Vac/60Vdc |
| Traversing path | ≤ 10 m |
| Traversing rate | ≤ 3 m/s |
| Tightening torque | 0,2 Nm |
| Conductors section | 4 |
| Degree of protection | IP65 / IP67 / IP68 / IP69K |
| Operating temperature | -40°C ÷ +105°C (posa fissa) -25°C ÷ +105°C (movimentazione) |
| Number of bending cycles | 4000000 |
| Conductors diameter including isolation | Ø 1,17mm ± 0,02mm |
Product Description
CD08F/0B-100A4 M8 female Connector Axial 4 poles Cable PP-EPDM 10m IP69K, -40°C…+105°C
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
