In Stock Hot Product
CD 80X80 WH

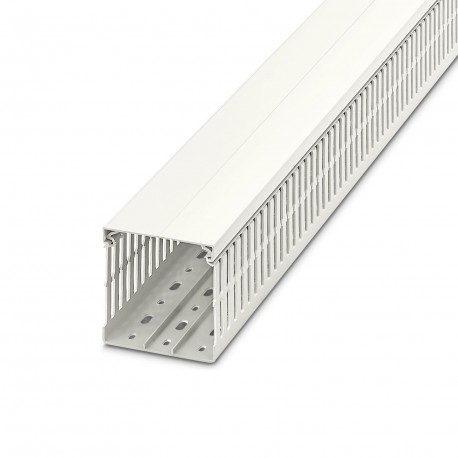

CD 80X80 WH 3240635 PHOENIX CONTACT Cable duct
$48.14USD
245 in stock
Key Specifications
Color:white (RAL 9010)
Width:80 mm
Height:80 mm
Length:2000 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | white (RAL 9010) |
| Width | 80 mm |
| Height | 80 mm |
| Length | 2000 mm |
| Material | PVC |
| Components | Lead-free |
| Halogen-free | no |
| Product type | Wiring duct |
| Article revision | 02 |
| Dimensional drawing | |
| Usage cross-section | 5685 mm² (100 %) |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Flammability rating according to UL 94 | V0 |
| Number of cables at 60% filling volume | 215 (2.5 mm² Ø 3.4 mm) |
Product Description
Wiring channel for installation and installation in control cabinets, white, top and bottom, width: 80 mm, height: 80 mm, length: 2000 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
