In Stock Hot Product
CD 40X100

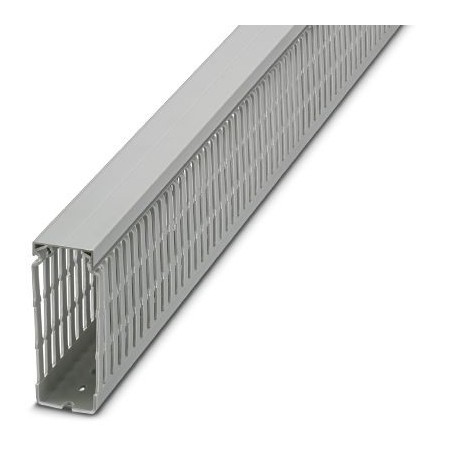

CD 40X100 3240294 PHOENIX CONTACT Cable duct
$15.38USD
683 in stock
Key Specifications
GTIN:4046356481359
Orderkey:3240294
Catalog page:Page 625 (C-3-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356481359 |
| Orderkey | 3240294 |
| Catalog page | Page 625 (C-3-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39259020 |
| (Ambient conditions) | 7030 |
| Halogen-free (General) | no |
| Minimum order quantity | 10 pc |
| Color (Ambient conditions) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Ambient conditions) | PVC |
| Diameter (Key Commercial Data) | 40.00 mm |
| Components (Ambient conditions) | Lead-free |
| Width (a) (Key Commercial Data) | 40 mm |
| Height (c) (Key Commercial Data) | 100 mm |
| Length (b) (Key Commercial Data) | 2000 mm |
| Weight per Piece (excluding packing) | 1,400.000 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection in acc. with standard (General) | CSA |
| Nominal cross section (Ambient conditions) | 2633 mm² |
| Ambient temperature (operation) (Dimensions) | -5 °C ... 60 °C |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Wiring channel for installation and installation in control cabinets, grey, top and bottom, width: 40 mm, height: 100 mm, length: 2000 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
