CCG09

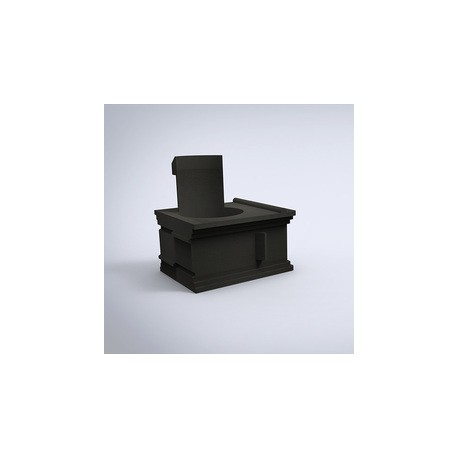

CCG09 ELDON Connectored cable insert,9-10 CCG09
$0.00USD
3746 in stock
Key Specifications
Benefit: (Features):Open cable grommets can be installed onto cables that are already fitted with connectors before they are installed into the cable entry frame. The cable grommets can be changed if required.
Comment: (Features):The cable grommets, CCG, are to be used with the gland plate entry accessory, CCF.
Feature: (Features):Open cable grommets allow for a wide range of cables sizes to be installed.
Advantage: (Features):The cable entry frame can be made up of different open grommets to match customer requirements.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Benefit: (Features) | Open cable grommets can be installed onto cables that are already fitted with connectors before they are installed into the cable entry frame. The cable grommets can be changed if required. |
| Comment: (Features) | The cable grommets, CCG, are to be used with the gland plate entry accessory, CCF. |
| Feature: (Features) | Open cable grommets allow for a wide range of cables sizes to be installed. |
| Advantage: (Features) | The cable entry frame can be made up of different open grommets to match customer requirements. |
| Finish: (Technical data) | Black. |
| Material: (Technical data) | Thermoplastic rubber, halogen free. |
| Protection: (Technical data) | IP 54 with suitable gland plate and cables. |
| Description: (Technical data) | Mounted together with the CCF cable gland plate, CCG grommets are used to easily route cables fitted with connectors. The grommet is positioned around the cable and is equipped with catch hooks that anchor themselves in the CCF cable gland plate. Strain relief is achieved by using a simple cable tie. |
| Flammability: (Technical data) | HB according to UL94. |
| Pack quantity: (Technical data) | 10 pieces. |
| Temperature resistance: (Technical data) | -40ºC to +80ºC. |
Product Description
Cable with connector, 9-10. Pack of 10 units.
