CCEH06

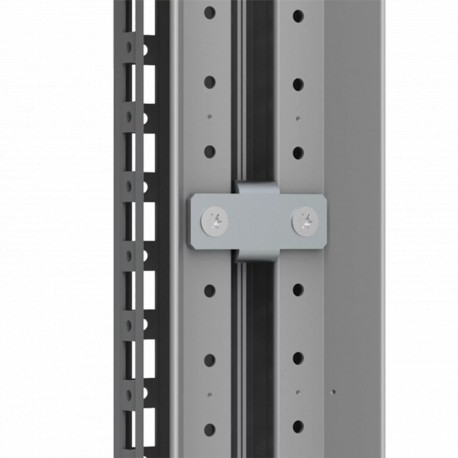

CCEH06 ELDON Short external baying kit CCEH06
$0.00USD
4583 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):20.00 mm
Model (EF000010):Coupling set, side
Width (EF000008):57.00 mm
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 20.00 mm |
| Model (EF000010) | Coupling set, side |
| Width (EF000008) | 57.00 mm |
| Colour (EF000007) | Other |
| Height (EF000040) | 30.00 mm |
| Benefit: (Features) | These brackets allow for mounting any other accessory without conflicting space. |
| Comment: (Features) | These brackets should only be used in combination with the small partial doors. |
| Feature: (Features) | A baying kit including reduced height brackets, mounted on the interior of the profiles, to allow for side-to-side baying of mild steel combinable floor standing enclosures with partial doors. |
| Material (EF002169) | Steel |
| Advantage: (Features) | The brackets do not consume space inside the enclosure and consume less height. |
| RAL-number (EF000116) | |
| Material: (Technical data) | 3 mm zinc plated steel. |
| Description: (Technical data) | Short brackets mounted on the outside hole pattern of the frame of the bayed enclosures with an "auto spacer" function. Specially designed for small doors/pannels configuration. This method of baying mild steel enclosures has also the advantage of creating a direct earthing connection between the enclosure frames. |
| Pack quantity: (Technical data) | 6 brackets with mounthing material. |
Product Description
Kit of outer binding, small, galvanized, 3 mm. Pack of 6 units.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
