In Stock Hot Product
CAS181

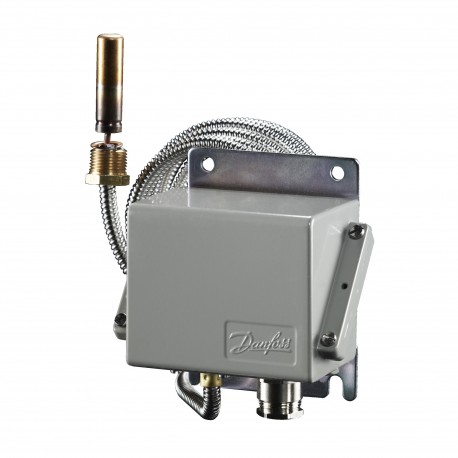

CAS181 060L315566 DANFOSS CONTROLES INDUSTRIALES CAS181 Thermostat M/10
$285.86USD
78 in stock
Key Specifications
EAN ():5702423148035
Type ():CAS181
Volume ():3.697 Liter
Approval ():ABSBVCCCCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423148035 |
| Type () | CAS181 |
| Volume () | 3.697 Liter |
| Approval () | ABSBVCCCCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA |
| Armoring () | Yes |
| Net weight () | 1.148 Kg |
| Charge type () | Adsorption |
| Sensor type () | Remote bulb |
| Serviceable () | No |
| Gross weight () | 1.208 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=0.1 A, 220 VDC13=12 W, 125 V |
| Packing format () | Multi pack |
| Parts included () | Gasket set |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | 84be8326-1b95-4f87-afb0-90ae08b65f06 |
| Differential type () | Fixed |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP67 |
| Product accessories () | Switches accessories |
| Product description () | Thermostat |
| Differential (FS) [K] () | 2.5 K |
| Electrical connection () | Screwed cable entry |
| Product Name Description () | Thermostat |
| Electrical conn. comments () | Metal cable gland |
| Electrical spec. standard () | EN 60947-4/-5 |
| Sensor size (Ø x L) [in] () | 1/2 x 2 1/2 in |
| Sensor size (Ø x L) [mm] () | 13 x 63 mm |
| Capillary tube length [mm] () | 2000 mm |
| Electrical connection size () | Pg 13.5 |
| Quantity per packing format () | 10 pc |
| Electrical conn. Male/Female () | Female |
| Connection for pocket or hose () | M 18 x 1.5 |
| Max. sensor temperature [°C] () | 250 °C |
| Max. sensor temperature [°F] () | 482 °F |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | 60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | 140 °F |
| Cap. tube length fraction [in] () | 78 3/4 in |
| Diff. @ Min. range setting [K] () | 2.5 K |
| Electrical connection standard () | DIN 40430 |
| Sensor pocket length min. [in] () | 3 in |
| Sensor pocket length min. [mm] () | 75 mm |
| Diff. @ Min. range setting[°C] () | 2.5 °C |
| Diff. @ Min. range setting[°F] () | 2.5 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -25 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -32 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Thermostat, CAS181
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: 60 - 150, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2000, Enclosure rating IP: IP67
