In Stock Hot Product
CAS133

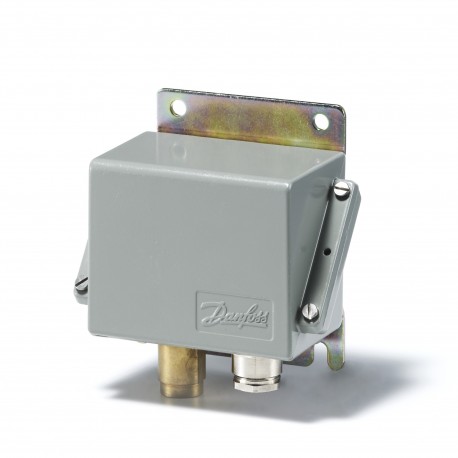

CAS133 060-315066 DANFOSS CONTROLES INDUSTRIALES CAS133 Pressure switch M/8
$285.51USD
85 in stock
Key Specifications
EAN ():5702423151653
Type ():CAS133
Volume ():2.434 Liter
Approval ():ABSBVCCCCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423151653 |
| Type () | CAS133 |
| Volume () | 2.434 Liter |
| Approval () | ABSBVCCCCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA |
| Net weight () | 0.908 Kg |
| Serviceable () | No |
| Gross weight () | 1.016 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=0.1 A, 220 VDC13=12 W, 125 V |
| Packing format () | Multi pack |
| Contact function () | SPDT |
| SCIP dossier no. () | 84be8326-1b95-4f87-afb0-90ae08b65f06 |
| Differential [bar] () | 0.1 bar |
| Differential [psi] () | 1.5 psi |
| EU RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP67 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Burst pressure [bar] () | 40 bar |
| Pressure Male/Female () | Female |
| Electrical connection () | Screwed cable entry |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| Electrical conn. comments () | Metal cable gland |
| Max. test pressure [psig] () | 145 psig |
| Electrical connection size () | Pg 13.5 |
| Max. Working Pressure [bar] () | 10 bar |
| Max. test pressure [bar] Pe () | 10 bar |
| Quantity per packing format () | 8 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 145 psig |
| Pressure connection standard () | ISO 228-1 |
| Electrical connection standard () | DIN 40430 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] () | 3.5 bar |
| Regulation range [bar] Pe [min] () | 0 bar |
| Regulation range [psig] Pe [max] () | 51 psig |
| Regulation range [psig] Pe [min] () | 0 psig |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure switch, CAS133
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: 0.00 - 3.50, Differential [bar]: 0.10, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP67, Max. Working Pressure [bar]: 10.0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
