CABLE-D37SUB/B/S/HF/S/ 2,0M

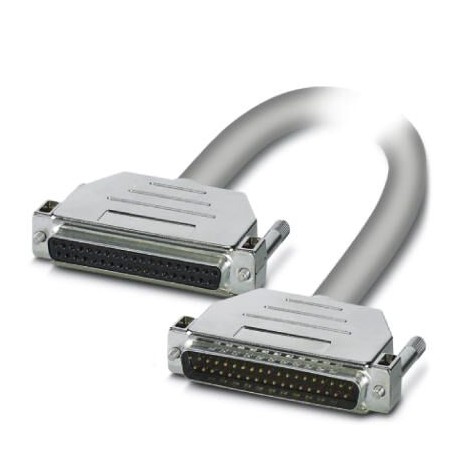

CABLE-D37SUB/B/S/HF/S/ 2,0M 1066609 PHOENIX CONTACT Assembled, shielded, halogen-free round cable connection..
$0.00USD
3818 in stock
Key Specifications
GTIN:4055626733814
Orderkey:1066609
(Drawings):≥ IP54 (Installation location)
Catalog page:Page 572 (C-5-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626733814 |
| Orderkey | 1066609 |
| (Drawings) | ≥ IP54 (Installation location) |
| Catalog page | Page 572 (C-5-2019) |
| Packing unit | 1 |
| (Color code) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Torque (General) | 0.2 Nm |
| ETIM 5.0 (eCl@ss) | EC000237 |
| ETIM 6.0 (eCl@ss) | EC000237 |
| ETIM 7.0 (eCl@ss) | EC000237 |
| (Connection data 2) | IEC 60332-3-22 |
| Custom tariff number | 85444290 |
| (Ambient conditions) | Tinned copper braided shield |
| Screw thread (General) | UNC 4-40 |
| (Supported controller) | D-SUB37 (37) = D-SUB37 (37) = gray-blue |
| China RoHS (Color code) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Color code) | |
| Torque (Connection data) | 0.2 Nm |
| Connection name (General) | Field level |
| Connection method (General) | D-SUB pin strip |
| Maximum altitude (Drawings) | ≤ 2000 m |
| eCl@ss 5.0 (Classifications) | 27242200 |
| eCl@ss 5.1 (Classifications) | 27242200 |
| eCl@ss 6.0 (Classifications) | 27249200 |
| eCl@ss 7.0 (Classifications) | 27249205 |
| eCl@ss 8.0 (Classifications) | 27249205 |
| eCl@ss 9.0 (Classifications) | 27242220 |
| Number of positions (General) | 37 |
| Insulation (Connection data 2) | Functional insulation |
| Screw thread (Connection data) | UNC 4-40 |
| Shielding (Ambient conditions) | yes |
| Degree of protection (Drawings) | IP20 |
| Designation (Connection data 2) | Air clearances and creepage distances |
| Number of connections (General) | 1 |
| Connection name (Connection data) | Controller level |
| Bending cycles (Ambient conditions) | 5000 (at a radius of ≥ 15x outside diameter) |
| Connection method (Connection data) | D-SUB socket strip |
| Flame resistance (Connection data 2) | IEC 60332-1-2 |
| Length of cable (Ambient conditions) | 2 m |
| Pollution degree (Connection data 2) | 2 |
| Cable resistance (Ambient conditions) | ≤ 80 Ω/km (at 20 °C) |
| Insertion/withdrawal cycles (General) | > 200 |
| Number of positions (Connection data) | 37 |
| Resistance to oil (Connection data 2) | against occasional splashes |
| Controller (Standards and Regulations) | universal |
| Gasoline resistance (Connection data 2) | against occasional splashes |
| Number of connections (Connection data) | 1 |
| Rated surge voltage (Connection data 2) | 1.2 kV |
| Overvoltage category (Connection data 2) | II |
| Standards/regulations (Connection data 2) | DIN EN 50178 |
| Ambient temperature (operation) (Drawings) | -40 °C ... 70 °C (fixed installation) |
| Single wire, material (Ambient conditions) | Cu uninsulated |
| External sheath, color (Ambient conditions) | gray |
| Nominal operating mode (Ambient conditions) | 100% operating factor |
| Outer sheath, material (Ambient conditions) | Halogen-free sheath |
| External cable diameter (Ambient conditions) | 10.8 mm ±0.5 mm |
| Rated insulation voltage (Connection data 2) | 125 V |
| Insertion/withdrawal cycles (Connection data) | > 200 |
| Single wire, cross section (Ambient conditions) | 0.25 mm² |
| Cable insulation resistance (Ambient conditions) | ≥ 20 MΩ/km (at 20 °C) |
| Ambient temperature (storage/transport) (Drawings) | -40 °C ... 80 °C |
| Wire diameter incl. insulation (Ambient conditions) | 1.2 mm ±0.05 mm |
| Single wire, cross section [AWG] (Ambient conditions) | 24 |
| Single wire, number of litz wires (Ambient conditions) | 14 |
| Max. permissible operating voltage (Ambient conditions) | 25 V AC |
| Max. current carrying capacity per path (Ambient conditions) | 2 A (50 °C) |
| Smallest bending radius, fixed installation (Ambient conditions) | 90 mm |
| Smallest bending radius, movable installation (Ambient conditions) | 170 mm |
| Connector 1 = connector 2 (optional) = wire color (Supported controller) | D-SUB37 (1) = D-SUB37 (1) = white |
Product Description
Ready-made, shielded and halogen-free round cable; Connection 1: Female connection D-SUB (1x 37-poles); Connection 2: D-SUB Plug (1x 37-pole); Cable length: 2 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
DiagramMaximum permissible current per path in uncoiled state
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
