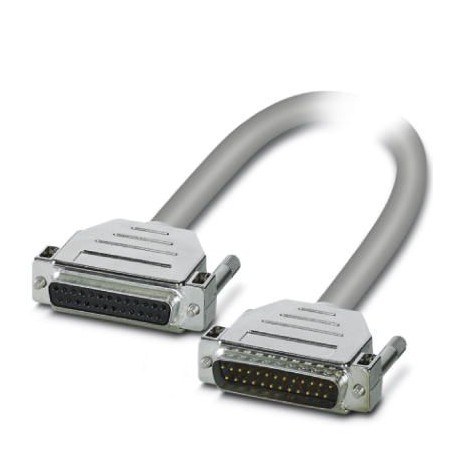

CABLE-D25SUB/B/S/600/KONFEK/S
CABLE-D25SUB/B/S/600/KONFEK/S 2302188 PHOENIX CONTACT Cable
$0.00USD
4361 in stock
Key Specifications
GTIN:4017918893149
Orderkey:2302188
(General):DIN VDE 0482 Part 332-1
Catalog page:Page 592 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918893149 |
| Orderkey | 2302188 |
| (General) | DIN VDE 0482 Part 332-1 |
| Catalog page | Page 592 (C-5-2017) |
| Packing unit | 1 pc |
| (Color code) | DIN VDE 0482 Part 332-1 |
| (Connector 2) | AO820 |
| Country of origin | HU (Hungary) |
| Custom tariff number | 85444290 |
| (Key Commercial Data) | Tinned copper-braided shield, approx. 85% covering |
| (Supported controller) | D-SUB25 (25) = D-SUB25 (25) = white-black |
| Controller (Connector 2) | ABB S800 I/O |
| Flame resistance (General) | IEC 60332-1 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Connector 1) | Controller level |
| Flame resistance (Color code) | IEC 60332-1 |
| Connection method (Connector 1) | D-SUB socket strip |
| Shielding (Key Commercial Data) | yes |
| - suitable I/O card (Connector 2) | DI810 |
| Number of positions (Connector 1) | 25 |
| Number of connections (Connector 1) | 1 |
| Weight per Piece (excluding packing) | 948.800 g |
| Length of cable (Key Commercial Data) | 6 m |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| External diameter (Key Commercial Data) | 10.5 mm |
| Nominal voltage UN (Key Commercial Data) | 25 V AC |
| Ambient temperature (operation) (General) | -20 °C ... 50 °C |
| Connection name (Environmental conditions) | Field level |
| Connection method (Environmental conditions) | D-SUB pin strip |
| Connection in acc. with standard (Color code) | CUL |
| Number of positions (Environmental conditions) | 25 |
| Max. conductor resistance (Key Commercial Data) | ≤ 0.09 Ω/m |
| Number of connections (Environmental conditions) | 1 |
| Single wire, cross section (Key Commercial Data) | 0.25 mm² |
| Ambient temperature (storage/transport) (General) | -20 °C ... 70 °C |
| Insertion/withdrawal cycles (Key Commercial Data) | > 200 |
| Single wire, cross section [AWG] (Key Commercial Data) | 24 |
| Max. current carrying capacity per path (Key Commercial Data) | 2 A |
| Connector 1 = connector 2 (optional) = wire color (Supported controller) | D-SUB25 (1) = D-SUB25 (1) = white |
Product Description
Shielded ready-made round cable; Connection 1: Female connection D-SUB (1x 25-poles); connection 2: D-SUB male connector (1x 25-pole); Cable length: 6 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
