CABLE-D15SUB/S/S/ 720/KONFEK/S

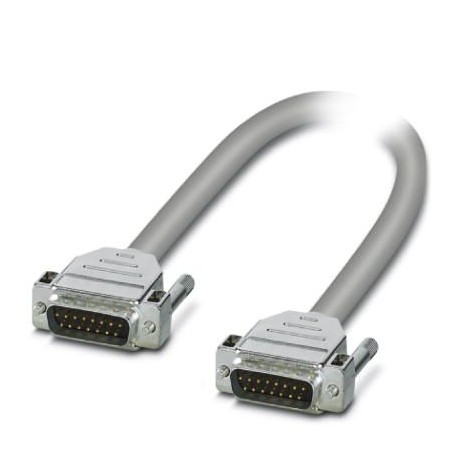

CABLE-D15SUB/S/S/ 720/KONFEK/S 2902259 PHOENIX CONTACT Cable
$0.00USD
3744 in stock
Key Specifications
GTIN:4046356649919
Orderkey:2902259
Packing unit:1
Custom tariff number:85444290
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356649919 |
| Orderkey | 2902259 |
| Packing unit | 1 |
| Custom tariff number | 85444290 |
| (Key Commercial Data) | 50 V DC |
| Flame resistance (General) | IEC 60332-1-2 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Connector 1) | Controller level |
| Flame resistance (Connector 2) | IEC 60332-1-2 |
| Connection method (Connector 1) | D-SUB pin strip |
| Shielding (Key Commercial Data) | Tinned copper-braided shield, approx. 85% covering |
| Number of positions (Connector 1) | 15 |
| Number of connections (Connector 1) | 1 |
| Length of cable (Key Commercial Data) | 7.2 m |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| External diameter (Key Commercial Data) | 7.9 mm |
| Nominal voltage UN (Key Commercial Data) | 25 V AC |
| Ambient temperature (operation) (General) | -20 °C ... 50 °C |
| Conductor cross section AWG (Connector 1) | 24 |
| Connection name (Environmental conditions) | Field level |
| Degree of protection (Key Commercial Data) | IP20 |
| Single wire, material (Key Commercial Data) | Cu tin-plated |
| Connection method (Environmental conditions) | D-SUB pin strip |
| External sheath, color (Key Commercial Data) | gray RAL 7035 |
| Outer sheath, material (Key Commercial Data) | PVC |
| Number of positions (Environmental conditions) | 15 |
| Number of connections (Environmental conditions) | 1 |
| Single wire, cross section (Key Commercial Data) | 0.25 mm² |
| Conductor cross section AWG (Environmental conditions) | 24 |
| Single wire, cross section [AWG] (Key Commercial Data) | 24 |
| Max. current carrying capacity per path (Key Commercial Data) | 2 A (uncoiled) |
| Conductor construction: Number of litz wires: (Key Commercial Data) | 14 |
