CAB-DSUB37M/OE/22/TP/S/10M

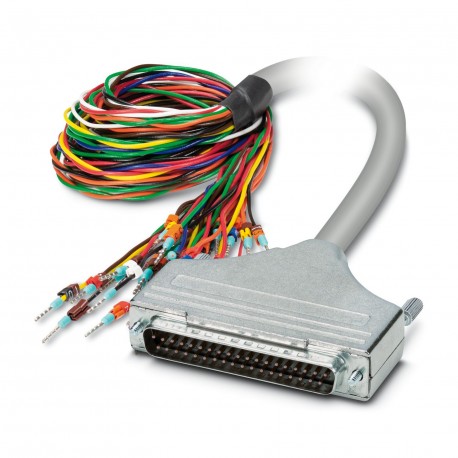

CAB-DSUB37M/OE/22/TP/S/10M 2909726 PHOENIX CONTACT Cable
$0.00USD
3142 in stock
Key Specifications
red:D-SUB37 (2) = ()
Note:The wires are marked and fitted with ferrules
blue:D-SUB37 (8) = ()
black:D-SUB37 (1) = ()
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| red | D-SUB37 (2) = () |
| Note | The wires are marked and fitted with ferrules |
| blue | D-SUB37 (8) = () |
| black | D-SUB37 (1) = () |
| brown | D-SUB37 (12) = () |
| green | D-SUB37 (6) = () |
| white | D-SUB37 (4) = () |
| orange | D-SUB37 (14) = () |
| yellow | D-SUB37 (10) = () |
| Shielded | yes |
| Cable length | 10 m |
| Halogen-free | no |
| Product type | System cable |
| Conductor type | Assembled shielded round cable |
| AWG signal line | 22 |
| Connection method | D-SUB pin strip |
| Current (Per path) | ≤ 1 A |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Number of positions | 37 |
| Number of connections | 1 |
| Operating voltage (AC) | ≤ 125 V AC |
| Operating voltage (DC) | ≤ 125 V DC |
| Conductor cross section | 19x 0.36 mm² |
| External cable diameter | 12.30 mm |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Conductor structure signal line | 7x |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Product Description
Shielded ready-made round cable; connection 1: Twisted pair (37-poles) (Conductors are labeled and equipped with ferrules); Connection 2: D-SUB Plug (1x 37-pole); Cable length: 10 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
