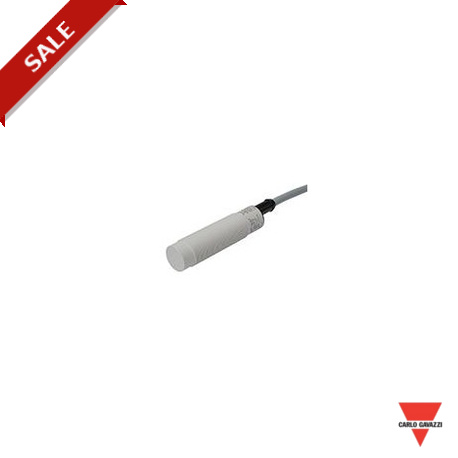

CA18CAN12PCTA

Proximity Sensors Capacitive Thermoplastic Polyester Housing Types CA18CAN/CAF.....• 4TH Generation TRIPLESHIELDTM• Adjustable sensing distance: 2 - 10 mm Flush or3-15 mm Non-flush• Protection: short-circuit, transients and reverse polarity• Dust and humidity compensation• Dust or Temperature alarm output• Rated operational voltage: 10-40 VDC• Output: DC 200 mA, NPN or PNP• Standard Output: NO and NC• LED indications for Power-supply, Target and Stability• IP67, IP68, IP69K, Nema 1, 2, 4, 4X, 5, 6, 6P, 12• Cable and M12 connector versions availableProduct DescriptionOrdering KeyCapacitive proximity switchCA18CAN12NAM1TheCA18CA..capacitiveproximity switches feature an improved 4THGenera- tion TRIPLESHIELDTM tech- nology. Furthermore, these sensors feature increased immunity to electromagnetic inteference(EMI),especial- ly to frequency drives. Not only does 4THGeneration TRIPLESHIELDTM feature anincreasedEMI,but it alsoincreasestheimmuni- ty to humidity and dust. The implementation of stability indication eases the setup procedure as both Stable ON and Stable OFF positions areindicatedby the Green andyellow LEDs.The sensing distance is increased by 25 %allowing room for additional stable detection.The Dust Alarm function gives an early warningthat the sensing surroundings have to be cleaned.The Temperature alarm func- tion raises an alarm if the sensing surface goes beyond60 degree celcius.The sensor housing is featur- ing IP69K as well as approval by ECOLABfor cleaning- and disinfection agents.Housing diameter (mm) Housing material Housing length Detection principleRated operating dist. (mm) Output typeOutput configurationConnection typeType SelectionHousingSensorOutputOutput Connection Rated operatingOrdering no.Ordering no.Ordering no. diameter type type functiondistance (Sn)StandardDust alarmTemperature alarmM 18FlushNPN NO+NC Cable0 - 8 mmCA18CAF08NAM 18FlushNPN NO+NC M12 Plug 0 - 8 mmCA18CAF08NAM1M 18Flush PNP NO+NC Cable0 - 8 mmCA18CAF08PAM 18FlushPNP NO+NC M12 Plug0 - 8 mmCA18CAF08PAM1M 18Flush PNP NO Cable0 - 8 mm CA18CAF08PODUCA18CAF08POTA M 18Flush PNP NC Cable0 - 8 mm CA18CAF08PCDUCA18CAF08PCTA M 18Non-FlushNPN NO+NC Cable0 - 12 mmCA18CAN12NAM 18Non-FlushNPN NO+NC M12 Plug 0 - 12 mmCA18CAN12NAM1M 18Non-Flush PNP NO+NC Cable0 - 12 mmCA18CAN12PAM 18Non-FlushPNP NO+NC M12 Plug0 - 12 mmCA18CAN12PAM1M 18Non-Flush PNP NO Cable0 - 12 mm CA18CAN12PODUCA18CAN12POTAM 18Non-Flush PNP NC Cable0 - 12 mm CA18CAN12PCDUCA18CAN12PCTASpecifications EN 60947-5-2Rated operating distance (Sn)Non-flush mounted sensor0 - 12 mm (factory setting12 mm),(ref. target 36x36 mm ST37,1 mm thick, grounded) Flush mounted sensor0 - 8 mm (factory setting8 mm - non-flush mounted) (ref. target 24x24 mm ST37,1 mm thick, grounded)Sensitivity control Adjustable by potentiometerElectrical adjustment11 turns Mechanical adjustment16 turns Adjustable distanceFlush types 2 to 10 mmNon-flush types3 to 15 mmEffective operating dist. (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnSpecifications are subject to change without notice (16.06.2015) 1
