CA-1RS1N8A8006X

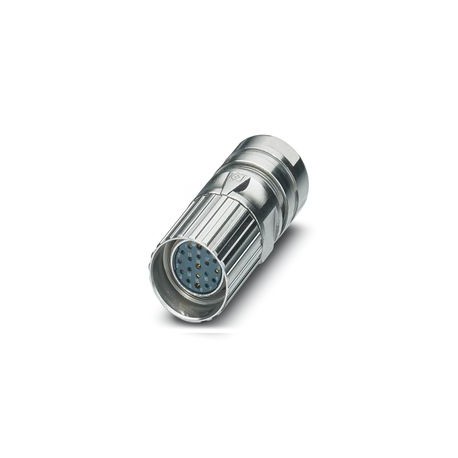

CA-1RS1N8A8006X 1245006 PHOENIX CONTACT M23, Cable connector, series: AC, straight, shielded: yes, Screw loc..
$37.29USD
317 in stock
Key Specifications
:74 V DC
Note:Order information: Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately
Coding:N
General:Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Note | Order information: Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately |
| Coding | N |
| General | Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately |
| Application | Signal |
| Head design | Socket |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Seal material | NBR |
| Type of locking | Screw locking mechanism |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Connection method | Crimp connection |
| Connection profile | 16+2+FE |
| Degree of pollution | 3 |
| Installation height | 2000 m |
| Number of positions | 19 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | II |
| Direction of rotation | Standard |
| Contact switching type | Socket |
| External cable diameter | 4 mm ... 6 mm |
| Insulation body material | PA 6.6 |
| Insertion/withdrawal cycles | 100 |
| Rated currentPower contacts | 10 A |
| Rated voltage Signal contact | 48 V AC |
| Contact diameterPower contacts | 1.5 mm |
| Contact diameterSignal contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
| Nominal current per signal contact | 8 A |
| Litz wire cross-sectionPower contactsmax. | 1 mm² |
| Litz wire cross-sectionPower contactsmin. | 0.08 mm² |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
| Litz wire cross-sectionSignal contactsmin. | 0.08 mm² |
Product Description
Plug-in connector. for cables
