CA-19S1NX22S00

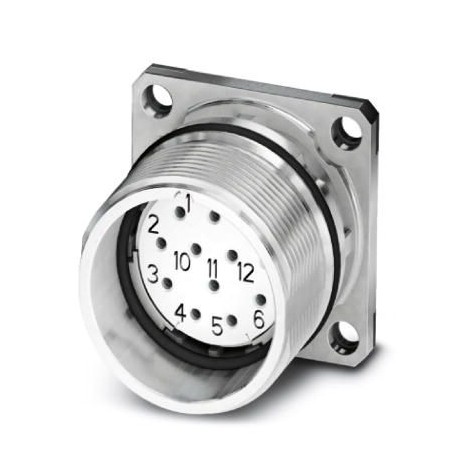

CA-19S1NX22S00 1623006 PHOENIX CONTACT Device connector, front mounting
$0.00USD
3065 in stock
Key Specifications
GTIN:4055626076935
Note:Made to Order (non-returnable)
Orderkey:1623006
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626076935 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1623006 |
| Packing unit | 1 pc |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Country of origin | DE (Germany) |
| Coding (Dimensions) | N |
| Custom tariff number | 85366990 |
| Minimum order quantity | 50 pc |
| Application (Dimensions) | Signal |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Housing data) | Lead 7439-92-1 |
| Contact material (Dimensions) | CuZn |
| Type of contacts (Dimensions) | Socket |
| Insulator material (Dimensions) | PA 6.6 |
| Degree of pollution (Dimensions) | 3 |
| Number of positions (Dimensions) | 19 |
| Rated surge voltage (Dimensions) | 1.5 kV |
| Overvoltage category (Dimensions) | II |
| Weight per Piece (excluding packing) | 21.010 g |
| Contact surface material (Dimensions) | Ni/Au |
| Contact connection method (Dimensions) | Solder-in connection |
| Thread type (Data of the insulating body) | M23 |
| Nominal voltage, power contact (Dimensions) | 150 V |
| Nominal voltage, signal contact (Dimensions) | 150 V |
| free solder pin length (Key Commercial Data) | 4.5 mm |
| Type of locking (Data of the insulating body) | for standard and SPEEDCON interlock |
| Housing material (Data of the insulating body) | CuZn |
| Contact diameter of power contacts (Dimensions) | 1.5 mm |
| Flange dimensions (Data of the insulating body) | 25 mm x 25 mm |
| Contact diameter of signal contacts (Dimensions) | 1 mm |
| Nominal current per power contact at 25°C (Dimensions) | 10 A |
| Nominal current per signal contact at 25°C (Dimensions) | 8 A |
| Litz wire cross section of power contacts max. (Dimensions) | 1 mm² |
| Litz wire cross section of power contacts min. (Dimensions) | 0.08 mm² |
| Litz wire cross section of signal contacts max. (Dimensions) | 1 mm² |
| Litz wire cross section of signal contacts min. (Dimensions) | 0.08 mm² |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
Plug-in connector for front wall appliances, AC, straight, shielded: yes, for standard lock and SPEEDCON, M23, No. of poles: 16+3, contact type: Female, Soldered connection, Flat joint, 4x Ø 3.2, flan
