CA-17S2N1280DN

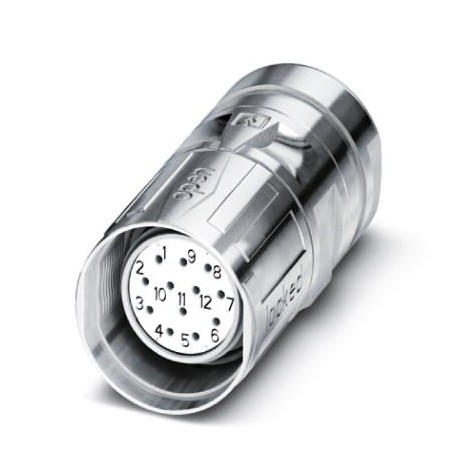

CA-17S2N1280DN 1621370 PHOENIX CONTACT Cable connector
$0.00USD
3288 in stock
Key Specifications
GTIN:4046356916189
Note:Made to Order (non-returnable)
Orderkey:1621370
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356916189 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1621370 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| Coding (Key Commercial Data) | N |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 3 mm ... 14.5 mm |
| Sealing material (Housing data) | NBR |
| Application (Key Commercial Data) | Signal |
| Weight per Piece (excluding packing) | 90.220 g |
| Contact material (Key Commercial Data) | CuZn |
| Type of contacts (Key Commercial Data) | Socket |
| Insulator material (Key Commercial Data) | PBT |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 17 |
| Rated surge voltage (Key Commercial Data) | 1.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Contact surface material (Key Commercial Data) | Ni/Au |
| Housing material (Data of the insulating body) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Contact connection method (Key Commercial Data) | Solder connection |
| Nominal voltage, power contact (Key Commercial Data) | 150 V |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 100 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 1 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.08 mm² |
