CA-17S1N122S00

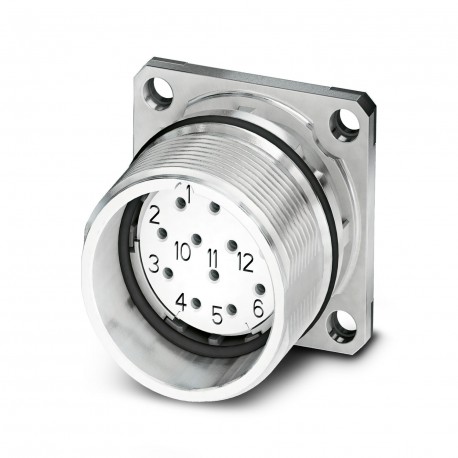

CA-17S1N122S00 1619961 PHOENIX CONTACT Device connector, front mounting
$0.00USD
4724 in stock
Key Specifications
:74 V DC
Coding:N
Application:Signal
Thread type:M23
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connectors (device side) |
| Rated voltage | 48 V AC |
| Type of locking | for standard and SPEEDCON interlock |
| Article revision | 10 |
| Contact material | CuZn |
| Housing material | GD-Zn |
| Connection method | Solder connection |
| Flange dimensions | 25 mm x 25 mm |
| Connection profile | 17 |
| Degree of pollution | 3 |
| Number of positions | 17 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Socket |
| Contact surface material | Ni/Au |
| Insulation body material | PBT |
| Insertion/withdrawal cycles | 100 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Contact diameterSignal contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
| Nominal current per signal contact | 8 A |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
Product Description
M23, Conect. plug. to be apar. front wall, AC, straight, shielded: yes, for standard and SPEEDCON locking, No. of poles: 17, Direction of rotation: Standard, contact type: Female, Weld connection, Fla
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
