CA-17P1NA22S00

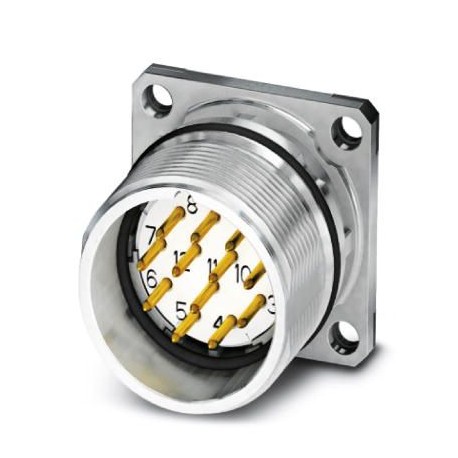

CA-17P1NA22S00 1619917 PHOENIX CONTACT Device connector, front mounting
$0.00USD
4506 in stock
Key Specifications
GTIN:4046356820509
Note:Made to Order (non-returnable)
Orderkey:1619917
Catalog page:Page 330 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356820509 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1619917 |
| Catalog page | Page 330 (C-2-2013) |
| Packing unit | 1 pc |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Country of origin | DE (Germany) |
| Coding (Dimensions) | N |
| Custom tariff number | 85366990 |
| Application (Dimensions) | Signal |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Housing data) | Lead 7439-92-1 |
| Contact material (Dimensions) | CuZn |
| Type of contacts (Dimensions) | Pin |
| Insulator material (Dimensions) | PBT |
| Degree of pollution (Dimensions) | 3 |
| Number of positions (Dimensions) | 17 |
| Rated surge voltage (Dimensions) | 1.5 kV |
| Overvoltage category (Dimensions) | II |
| Weight per Piece (excluding packing) | 30.300 g |
| Contact surface material (Dimensions) | Ni/Au |
| Contact connection method (Dimensions) | Solder-in connection |
| Thread type (Data of the insulating body) | M23 |
| free solder pin length (Temperature range) | 10 mm |
| Nominal voltage, power contact (Dimensions) | 150 V |
| Type of locking (Data of the insulating body) | for standard and SPEEDCON interlock |
| Housing material (Data of the insulating body) | CuZn |
| Contact diameter of power contacts (Dimensions) | 1 mm |
| Flange dimensions (Data of the insulating body) | 25 mm x 25 mm |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 125 °C |
| Nominal current per power contact at 25°C (Dimensions) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Conect. plug. to be apar. front wall, AC, straight, shielded: yes, for standard lock and SPEEDCON, No. of poles: 17, Direction of rotation: Standard, type of contact: Male, Weld connection, Flat
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
