CA-17F1N8A9504X

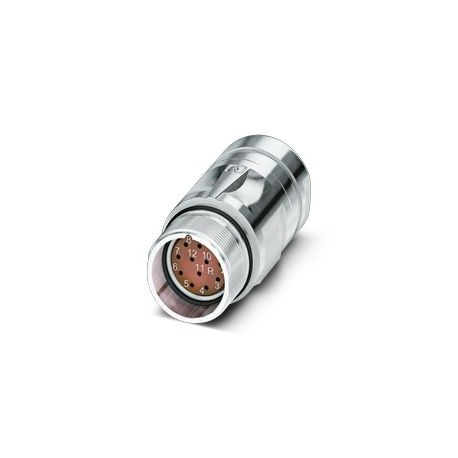

CA-17F1N8A9504X 1243934 PHOENIX CONTACT M23, Mating connector, series: AC, straight, shielded: yes, for stan..
$23.47USD
461 in stock
Key Specifications
:Signal
Link:Crimp Connection
note:Ordering instructions: Crimp contacts Ø 1 mm to be ordered separately
Coding:N
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Signal | |
| Link | Crimp Connection |
| note | Ordering instructions: Crimp contacts Ø 1 mm to be ordered separately |
| Coding | N |
| Application | Feedback signal |
| Screwing Pg | without |
| Thread type | M23 |
| No. of poles | 17 |
| Product Type | Circular connectors (cable side) |
| Clamping Type | for standard and SPEEDCON clamping |
| General notes | Crimp contacts 17 x 1 mm to be ordered separately |
| Head structure | female |
| Insertion plan | 17 |
| Gasket material | FPM |
| Housing Material | Rotating parts: copper-zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Degree of pollution | 3 |
| Overvoltage Category | Iii |
| Direction of rotation | standard |
| Contact Switching Type | female |
| Sizing Impulse Voltage | 1.5 kV |
| Conductor Outer Diameter | 10 mm ... 14.5 mm |
| Insulation body material | PA 6.6 |
| Rated Voltage Signal Contact | 48 V AC |
| Degree of protection (engaged) | IP67 |
| Ambient temperature (operating) | -40 °C ... 125 °C |
| Contact DiameterSignal contacts | 1 mm |
| Wire sectionSignal contactsMax. | 1 mm² |
| Wire sectionSignal contactsMin. | 0.06 mm² |
| Rated current for each signal contact | 8 A |
Product Description
Plug-in coupling connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
