CA-17F1N8A9504

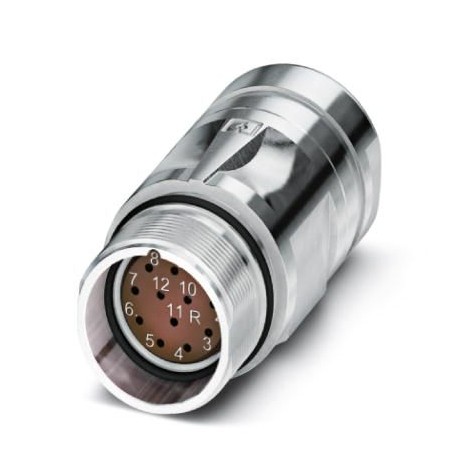

CA-17F1N8A9504 1619995 PHOENIX CONTACT Coupler connector
$0.00USD
4810 in stock
Key Specifications
GTIN:4046356819992
Note:Made to Order (non-returnable)
Orderkey:1619995
Catalog page:Page 104 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356819992 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1619995 |
| Catalog page | Page 104 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| Coding (Temperature range) | N |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 10 mm ... 14.5 mm |
| Application (Temperature range) | Feedback, signal |
| Sealing material (Housing data) | FPM |
| Type of contacts (Temperature range) | Socket |
| Weight per Piece (excluding packing) | 89.800 g |
| Insulator material (Temperature range) | PA 6.6 |
| Degree of pollution (Temperature range) | 3 |
| Number of positions (Temperature range) | 17 |
| Rated surge voltage (Temperature range) | 1.5 kV |
| Overvoltage category (Temperature range) | III |
| Thread type (Data of the insulating body) | M23 |
| Contact connection method (Temperature range) | Crimp connection |
| Type of locking (Data of the insulating body) | for standard and SPEEDCON interlock |
| Housing material (Data of the insulating body) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Nominal voltage, signal contact (Temperature range) | 100 V |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 125 °C |
| Contact diameter of signal contacts (Temperature range) | 1 mm |
| Nominal current per signal contact at 25°C (Temperature range) | 8 A |
| Litz wire cross section of signal contacts max. (Temperature range) | 1 mm² |
| Litz wire cross section of signal contacts min. (Temperature range) | 0.06 mm² |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Plug-in coupling connector, AC, straight, shielded: yes, for standard lock and SPEEDCON, No. of poles: 17, Direction of rotation: Standard, type of contact: Female, Crimped connection, cable diam
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
