In Stock Hot Product
CA-12S2S8A80DN

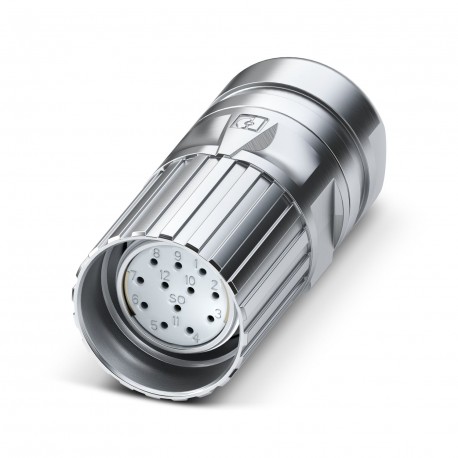

CA-12S2S8A80DN 1621436 PHOENIX CONTACT Cable connector
$0.00USD
3639 in stock
Key Specifications
:74 V DC
Coding:S
Application:Signal
Thread type:M23
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Coding | S |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Seal material | NBR |
| Type of locking | Screw locking mechanism |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Connection method | Crimp connection |
| Connection profile | 12 |
| Degree of pollution | 3 |
| Number of positions | 12 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Counter direction |
| Contact switching type | Socket |
| External cable diameter | 3 mm ... 14.5 mm |
| Rated currentPower contacts | 8 A |
| Contact diameterPower contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
Product Description
M23, Plug connector. for cables, AC, straight, shielded: yes, Screw lock, No. of poles: 12, Direction of rotation: Opposite movement, type of contact: Female, Crimped connection, Cable diameter range:
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
