CA-12S2N8A8007

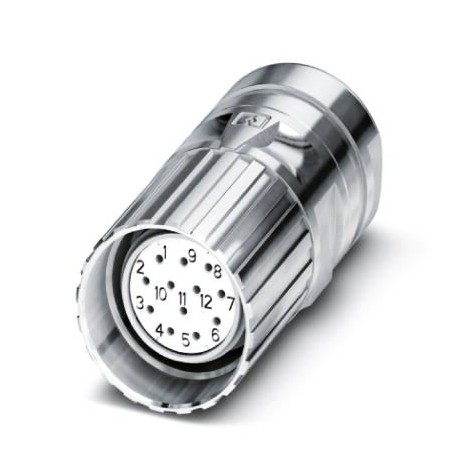

CA-12S2N8A8007 1622047 PHOENIX CONTACT Cable connector
$0.00USD
4811 in stock
Key Specifications
GTIN:4055626004679
Orderkey:1622047
Packing unit:1
(Cable seal data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626004679 |
| Orderkey | 1622047 |
| Packing unit | 1 |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| Note (Key Commercial Data) | Order information: Order crimp contacts Ø 1 mm separately |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| Coding (Key Commercial Data) | N |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 6 mm ... 10 mm |
| Sealing material (Housing data) | NBR |
| Application (Key Commercial Data) | Signal |
| Type of contacts (Key Commercial Data) | Socket |
| Insulator material (Key Commercial Data) | PA 6.6 |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 12 |
| Rated surge voltage (Key Commercial Data) | 1.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Contact connection method (Key Commercial Data) | Crimp connection |
| Nominal voltage, power contact (Key Commercial Data) | 150 V |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Plug connector. for cables, AC, straight, shielded: yes, Screw lock, No. of poles: 12, Direction of rotation: Counter movement, type of contact: Female, Crimped connection, cable diameter range:
